Tech2 Diagnostic Scanner For GM/SAAB/OPEL/SUZUKI/ISUZU/Holden with TIS2000 Software Full Package in Carton Box

Product Description

Tech2 Diagnostic Scanner For GM/SAAB/OPEL/SUZUKI/ISUZU/Holden with TIS2000 Software
Top 4 Reason to Get GM Tech2 Full Package:

1. Multi-langauge:English, Italian, French, Portuguese, German, Spainish, Korean, Japanese, Thai, Chinese
2. Update:via32MB Software Card, when there is newer version, you can just buy new card to update
Tech2 for GM Software Version:
GM: English 32.007
SAAB: English 148
OPEL: English 165 (Support Cars from 1997-2014)
Holden: English 149 (Support Cars from 1999-2013)
SUZUKI: English 01.210.020
ISUZU: English K line 11.53
CAN line 107.021
3. Year Coverage of Diagnosis:From 1992 to 2013, With Help of Tis2000 Software, It Can Do Programming for Cars Before Year 2007
4. Package light and easy for carry.

Notice:
1. It Can Only Support 12V Cars, No Trucks
2. One Device only Has One 32MB Card As Default, If You Want do more vehicles, Please Buy Additional32MB Memory Card

Tech2 Description:
The Tech-2 is the same tester GM Technicians use to diagnose GM vehicles. The Vetronix Tech 2 comes with Authentic GM software and provides support for on-board diagnostics on all GM systems 1992 thru 2011.
Car model supported: GM/SAAB/OPEL/SUZUKI/ISUZU/HOLDEN

Tech2 Specification:
1) Dimensions: 12
2) Microprocessor: 32 bit,16 MHz
3) Memory: 32 MB flash type II PCMCIA. Type III slot available for future expansion.
4) Communications: Integral RS232 communication port.
5) Screen: 3.8.8 backlit monochrome with full graphics capability: 320,40 pixels. Displays up to 9 vehicle parameters at once .Download Tech2 Brochure (5.2 Mb)

Tech2 Features:
1) Authentic GM software in the Tech 2 Flash means the most comprehensive diagnostic software available for late model GM vehicles.
2) Support for on-board diagnostics on all GM systems 1992 thru 2011.
3) Removable hardware modules provide insurance against scan tool obsolescence.
4) Large, easy-to-read backlit screen.
5) RS232 & RS485 ports provide the avenue to connect future devices to your Tech 2 Flash.
6) Ability to capture stored DTCs, Freeze Frame, and Failure Record for later review.
7) Ability to view the status of vehicle diagnostic tests as they run.
8) Bi-directional The authentic GM 1992-current year software will provide full bi-directional control when performing power train, chassis, and body diagnostics.

An industry change in protocol from OBD II to Controller Area Network (CAN) has begun. In order to perform diagnostics on a vehicle that uses the CAN interface; you will need the Tech 2 Flash and a CAN diagnostic interface module. The module connects between the Tech 2 Flashs diagnostic link cable and the OBD adapter. Once the module is connected, it can be used on all GM vehicle applications,even those vehicles using other platforms such as OBD I and OBD II.

The Following GM Vehicles Utilize The CAN Interface
05 Buick Allure (3.6L)
05 Buick LaCrosse (3.6L)
05 Buick Rainier (5.3L)
04-05 Buick Rendezvous (3.6L)
04-05 Cadillac CTS (3.6L)
04-05 Cadillac SRX (3.6L / 4.6L)
04-05 Cadillac XLR (4.6L)
05 Cadillac STS (3.6L / 4.6L)
05 Chevrolet Cobalt (2.2L)
05 Chevrolet Corvette (6.0L)
05 Chevrolet Equinox (3.4L)
05 Chevrolet TrailBlazer (5.3L)
05 Chevrolet SSR (6.0L)
04 Chevrolet Malibu (Body/Chassis only)
05 Chevrolet Malibu (3.5L)
05 GMC Envoy (5.3L)
05 Pontiac G6 (3.5L)
05 Pontiac GTO (6.0L)
05 Pontiac Pursuit (2.2L)

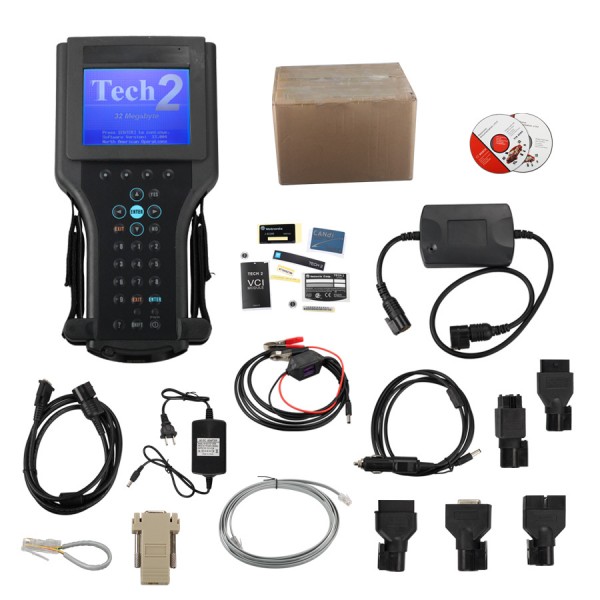

GM Tech2 Package List:

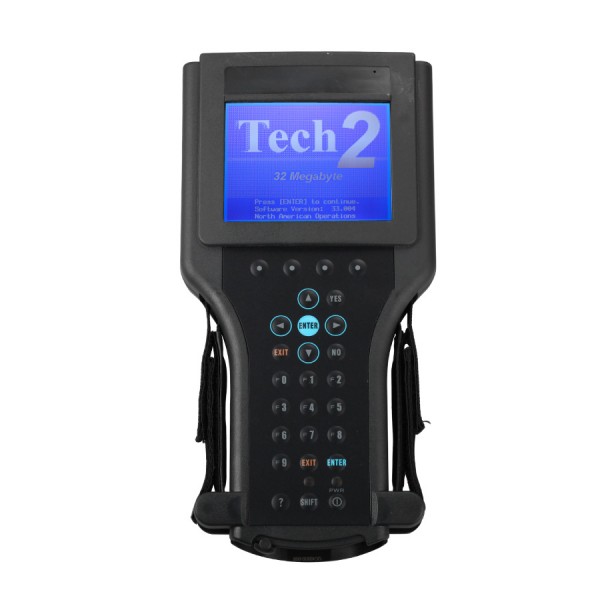

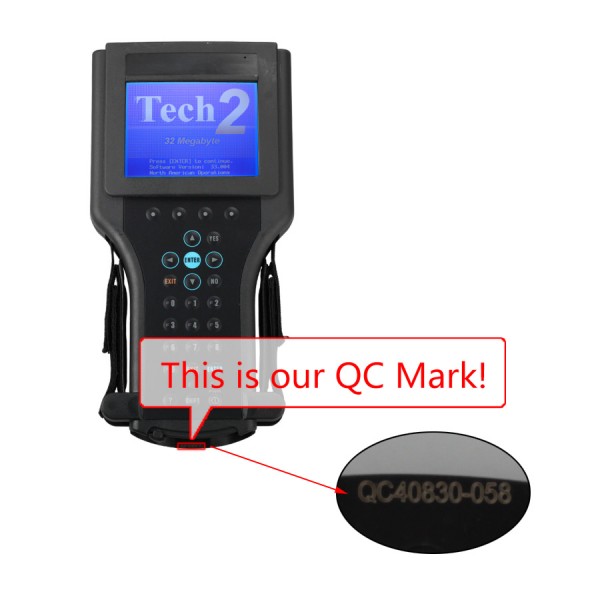

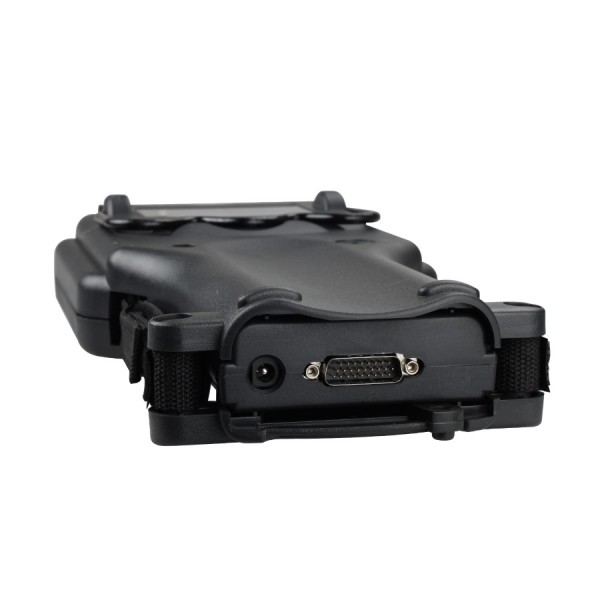

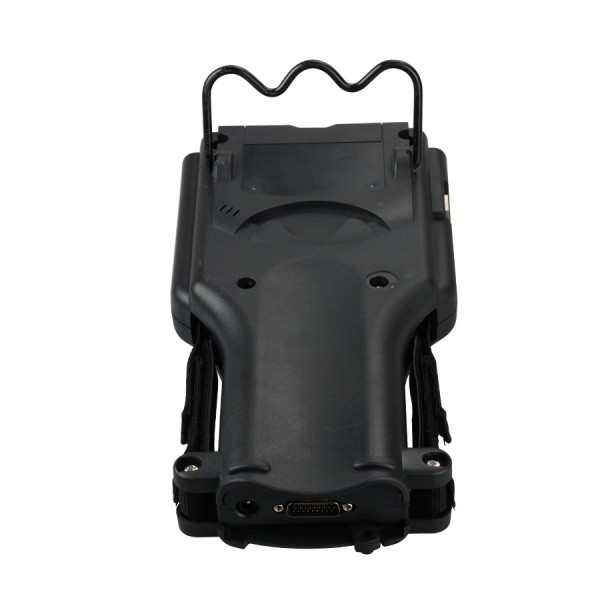

Tech-2 Flash Tester
32 MB PCMCIA Card with GM OE Applications

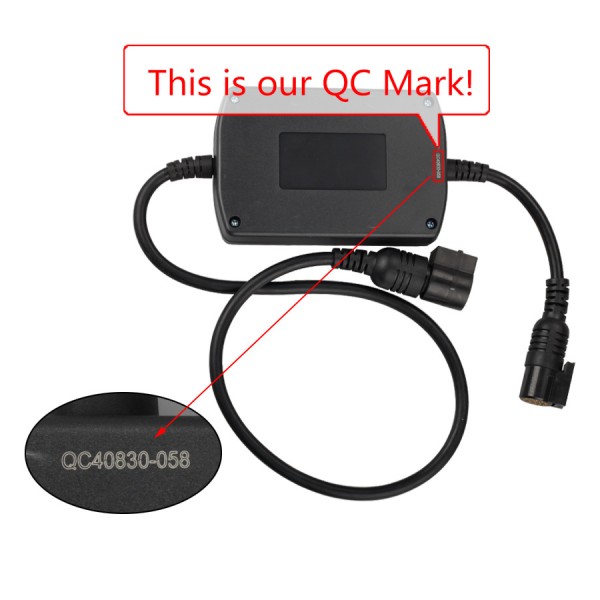

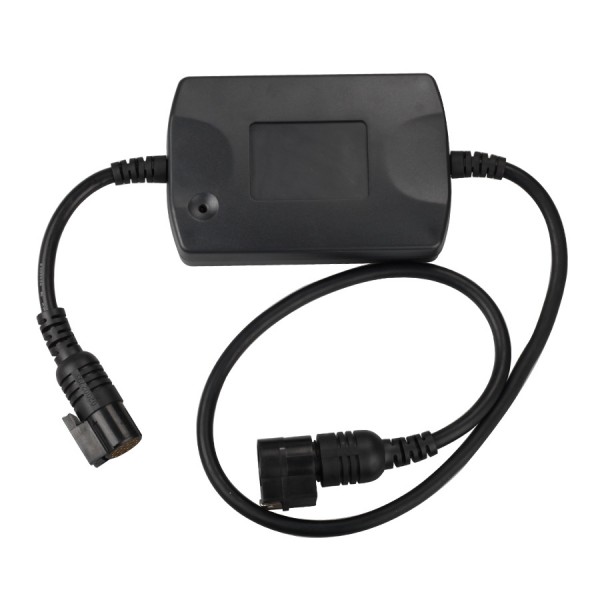

CAN diagnostic interface module(Candi) and instruction sheet download (199.2 kb)
RS232 cable and user manual

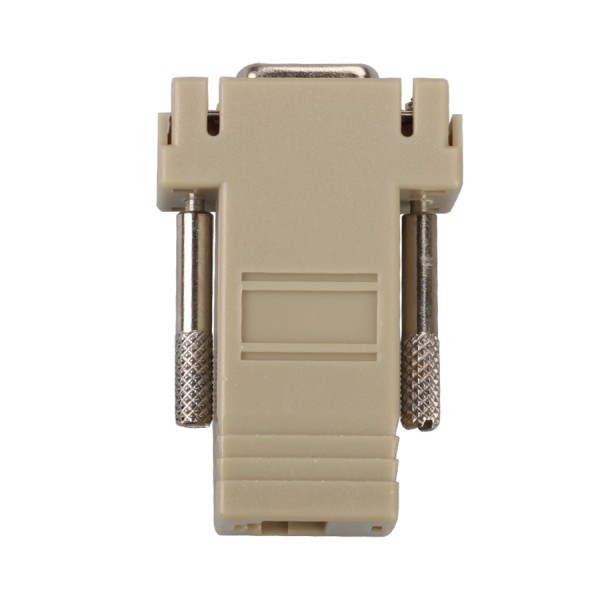

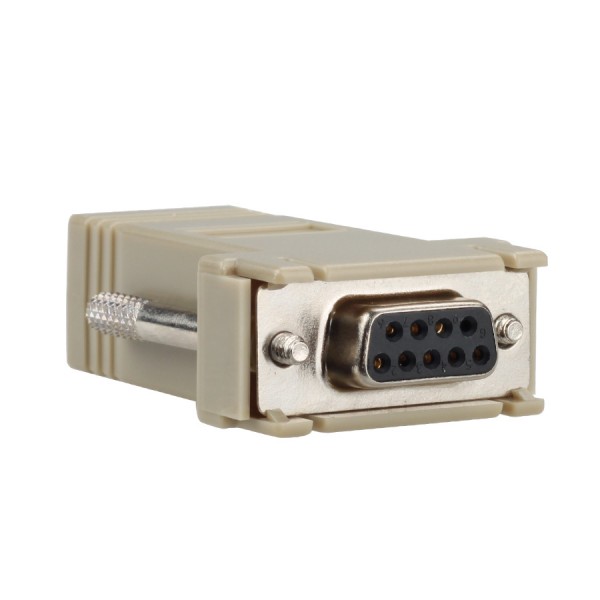

RS232-DB9 adapter
DLC Cable, DLC Loopback Adapter
12V Cigarette Lighter Power Cable

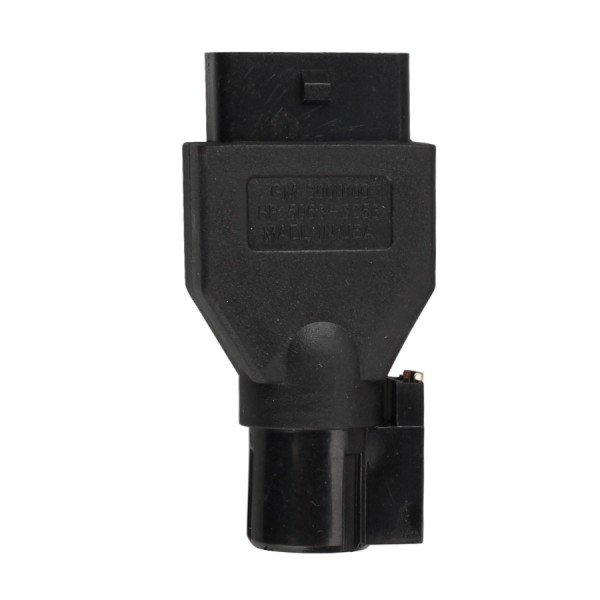

SAE 16/19 Adapter

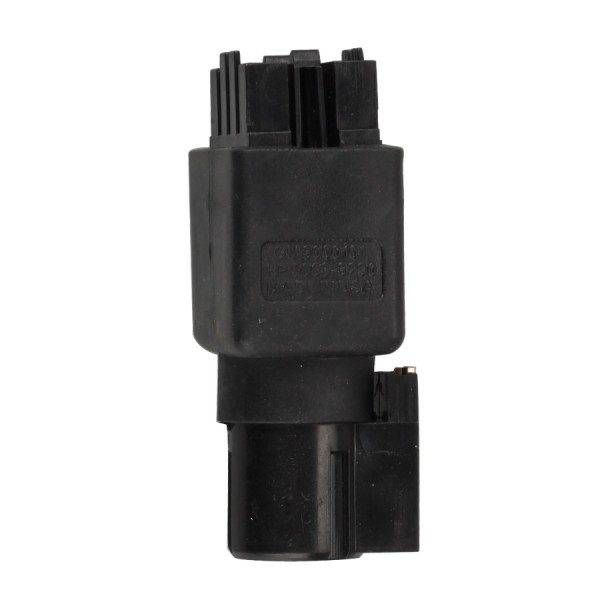

NAO 12/19 Adapter
Battery Power Cable
Storage Case
TIS 2000 CD
