Product Description
MB SD Connect Compact 4 support reading out & erasing trouble code,reading the real-time data of sensor and actuator, coding and programming. MB SD Connect Compact 4 support wireless diagnose, support K line,CAN BUS and UDS protocol, fit all computers,with multi-language.
New MB SD Connect Compact 4 wireless Star Diagnosis Support WIFI with V2019.7 Software HDDTop 5 Reasons to Get New MB SD Connect Compact 4:
1. New MB SD Connect C4 come with D-LINK WIFI Card
2. New MB SD Connect C4 has more competitive price
3. New MB SD Connect C4 come with latest software: V2015.12
4. New MB SD Connect C4 support both cars and trucks, support wifi connection
5. New MB SD Connect C4 come with one year warranty.
Software Includes:
1. D-A-S / Xentry: the automatically Diagnosis Assistance System ,Concise interface and straightforward operation with IB M high-quality computer can realize the quick and accurate code reading and the whole car system testing
2. W-I-S net: Workshop Information System Supply the whole view of the wiring diagram in a car,component location diagram and maintenance method. What you do is to enter the chassis number, and then you will get the manufacture data, engine configuration and the car model -all in detail.
3. EPC.net : Electronic Parts Catalog
4. ST Finder 2008:Part location finder
5. STARUTILITIES : the movement management system and self-test
6. SDMEDIA 2014
7. PL69
New MB Compact 4 feature:
1. New MB SD Connect Compact 4 Star Diagnosis not only support K line diagnose and CAN BUS,but also UDS diagnose protocol. Because old MB STAR C4 main board do not have UDS chip, so old MB STAR C4 can not support it;
2. Multiplexer now use Lan cable to connect, can fit Only applies to DELL computer and ThinkPad computer
3. Connector adopt Military quick swap technology, it can support 10,000 times pull plug, more stable;
4. All core accosseries adopt original new packing chip, and 24hours test, guarantee the quality of the products;
5. Support multi-language: Bulgarian/ Danish/ Greek/ Spanish/ French/ Italian/ Korean/ Polish/ Romanuan/ Serbo-Croatian/ Turkish/ Czech/ German/ English/ Finish/ Hyngarian/ Japanese/ Dutch/ Portuguese/ Russian/ Swedish/ Chinese
MB SD C4 Supported Vehicle List:
Passenger Car Support List:
A(176), A(169), A(168), B(246), B(245), CLC(117), C(204) C(203), C(202), 190(201), E(212), E(211), E(210), 124(124), S(222), S(221), S(220), S(140), S(126), E(207), CLK(209), CLK(208), CLS(218), CLS(219), CL(216), CL(215), CL(140), SLK(172), SLK(171), SLK(170), SL(231), SL(230), SL(129), SL(107), SLS(197), M(166), M(164), M(163), G(463), G(461), E(212), E(211), E(210), 124(124), S(222), S(221), S(220), S(140), CLK(209), CLK(208), CLS(218), CLS(219), CL(216), CL(215), CL(140), SLK(172), SL(231), SL(230), SL(129), SL(107), SLS(197), M(166), M(164), M(163), G(460), GL(164), GLK(204), R(251)
Van Support List:
MB 100(631), T1, SprinterIII, SprinterII, SprinterI, Sprinter900, Citan, Vito(639), Vito(638), V(638), Viano(639), T2, Vario, Vaneo(414)
Truck Support List:
Actros963/4, Actros2,3, AtegoIII, AtegoII, AxorII, Eonic, Zetros, Actros, Atego Light, Atego Heavey, HPN M96, Atron, HPN M2000, SKL, FSK, Further model series
Unimog Support List:
U20, UGN, UHN
Bus Support List:
TRAVEGO, INTOURO, INTEGRO, CITARO, CAPACITY, CITO, TOURISMO, O350/ O403, CONECTO, O404, O405- O408, Minibus, OC500, TOURO, TOURINO, MBC, MULITEGO, O500, O500/ OH, OH, OH368, OF, OF384, LO, O400, FURTHER MODEL SERIES
Super Sports Car Support List:
SLR(199)
How to Set WIFI for New MB SD C4?
1. Disconnect the local area connection
2. Connect the sdconnect 4 with the car and start the car
3. Connect to the wireless connections, please follow the next instructions to set: click Configuration-MUX-Register/configure, under the "General information", select name "04" and then tick off "Wlan parameters, road", then set the following parameters: IP address: 192.168.2.200, Network screen: 255.255.255.0, Encryption: WEP / Hex, Key: aaaaaaaaaaaaaaaaaaaaaaaaaa (26 a in total), we have video tutorial, please click column "Video" to watch or contact our customer service to send you.

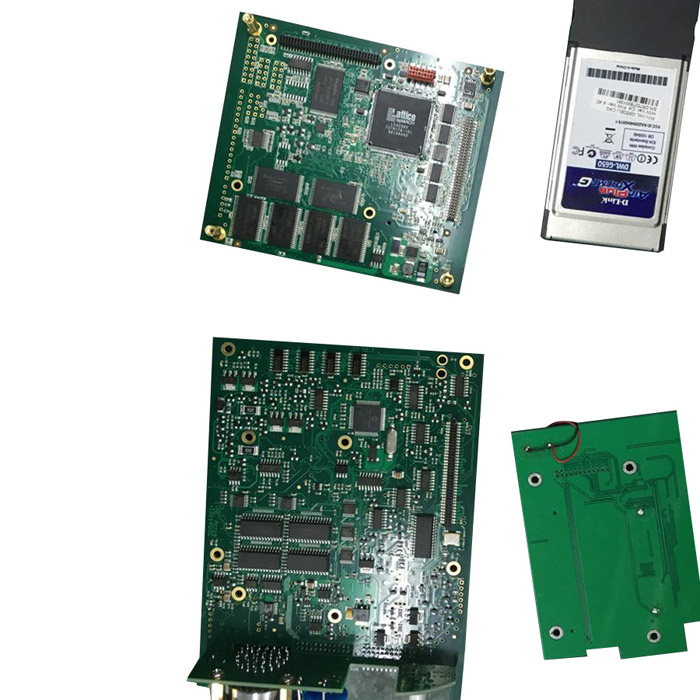

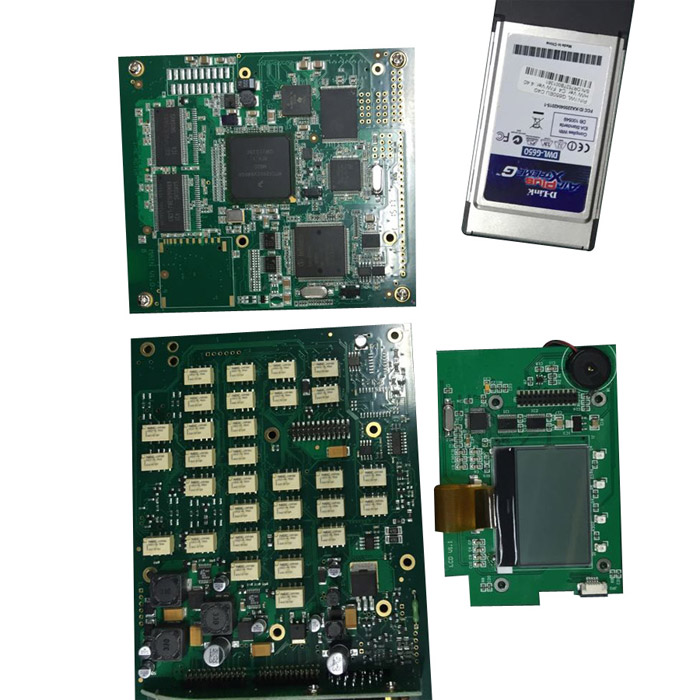

New MB SD C4 PCB Board Display:
MB SD C4 Firmware Update to V2.3 Procedure
1. Prepare 6 common AA batteries of 5. Then install the battery by following the "1,steps-for-installing-battery" file.
Notes: The batteries need to be new with fully charged.
2. Connect the MB SD C4 interface with the computer by green cable. Then use the OBD cable to connect the MB SD C4 interface with car.
If can not connect car, please use the OBD 12V power supply to take place of car.
3. Open the 2012.09 DAS software. Then check those 3 files Update_automatic, Update_manual, Update_Special from the C:\programm files\SDconnect Toolkit.
If the name of the file is not right, please correct it.
4. Restart the computer.
5. Start to update MB SD C4 Firmware by following the file from: "2,Update SDconnect".

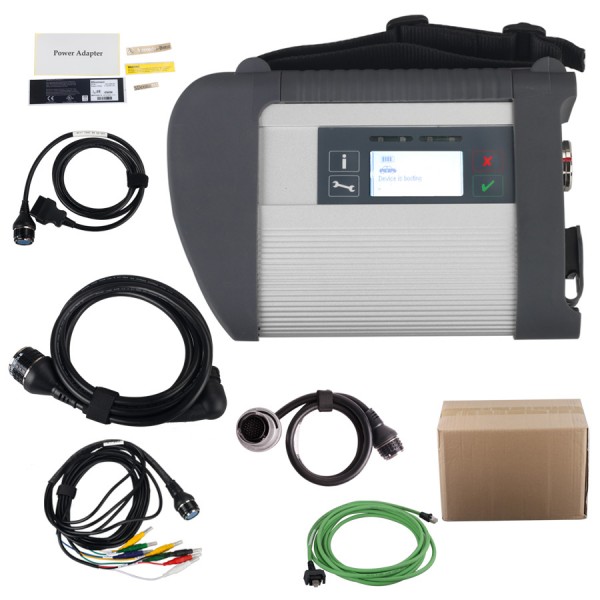

Package list:

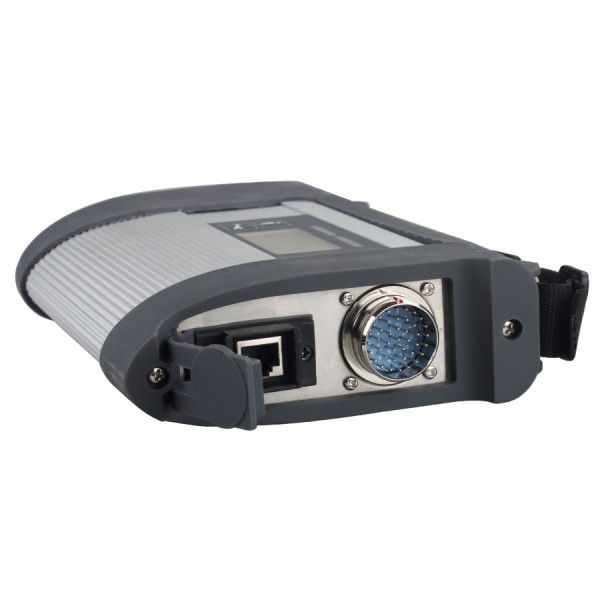

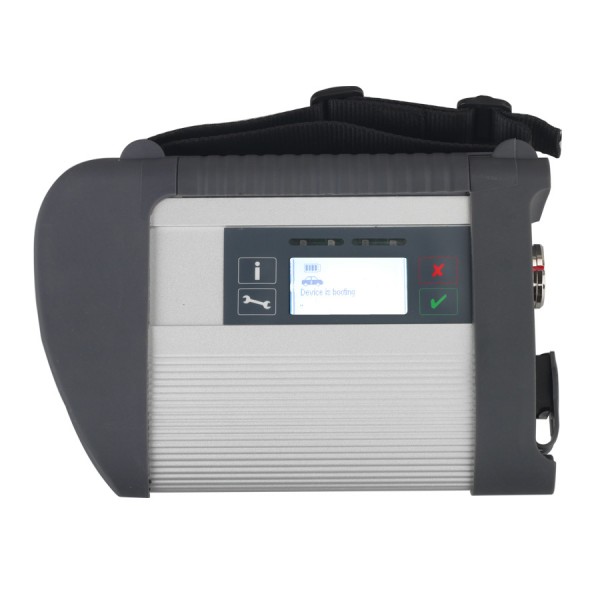

1pc x New MB SD C4 Multiplexer

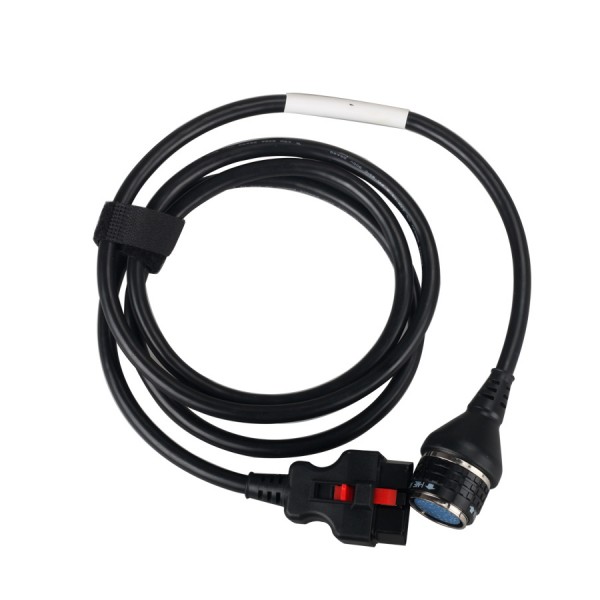

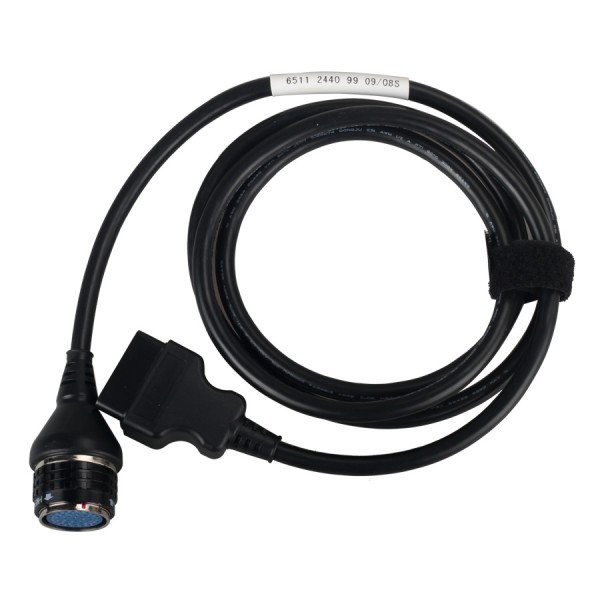

1pc x OBDII 16PIN Cable
1pc x 38PIN Cable

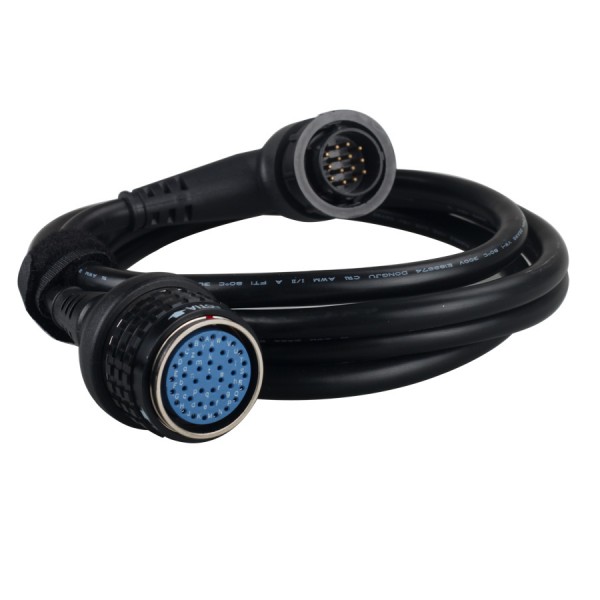

1pc x 14PIN Cable

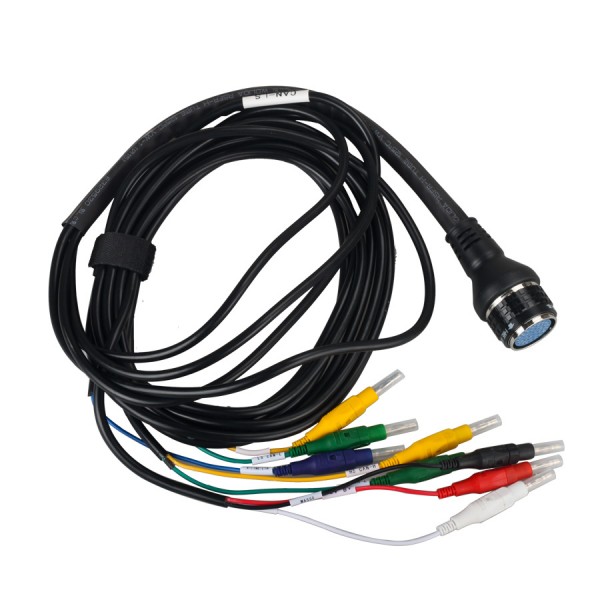

1pc x 4PIN Cable

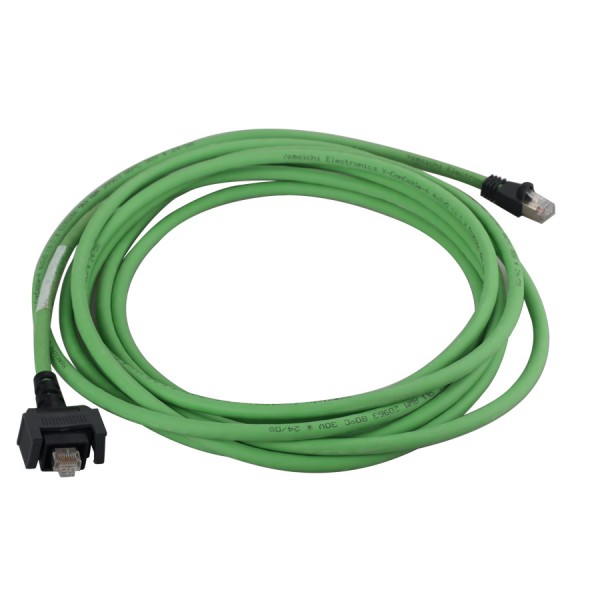

1pc x Lan Cable
1pc x Software HDD
