AUTOOL SDT206 Car Smoke Leakage Detector Automotive EVAP Leak Tester Locator Auto Diagnostic Generator Intake Bladder Airbag

  • $243.20

  • Ex Tax: $243.20
  • Package: 0.00*0.00*0.00cm
  • Weight: 0.10kg
  • Availability:In Stock
  • Product Code: SDT206



AUTOOL SDT206 Car Smoke Machine is designed for detecting the leakage of pipe systems on cars, motorcycles

fuel pipe system, air intake system and cooling tank.
This is a professional auto pipe leak detect tool,which can help us position leakage on any pipe system quickly and exactly,
such as EVAP system, Intake system, exhaust system and so on.

sdt206_03
sdt206_01
sdt206_02


Cautions:

With longtime high temperature, the smoke and oil will oxidize and deteriorate.
It will infect the service life of smoke generated part, so please change smoke and oil regularly.
1. Before filling fresh oil, please pour out the remaining oil in the detector.
2. When the smoke output has water drops, please replace with fresh oil.
3. Liquid paraffin and baby oil are OK.(Liquid is not included in the package)

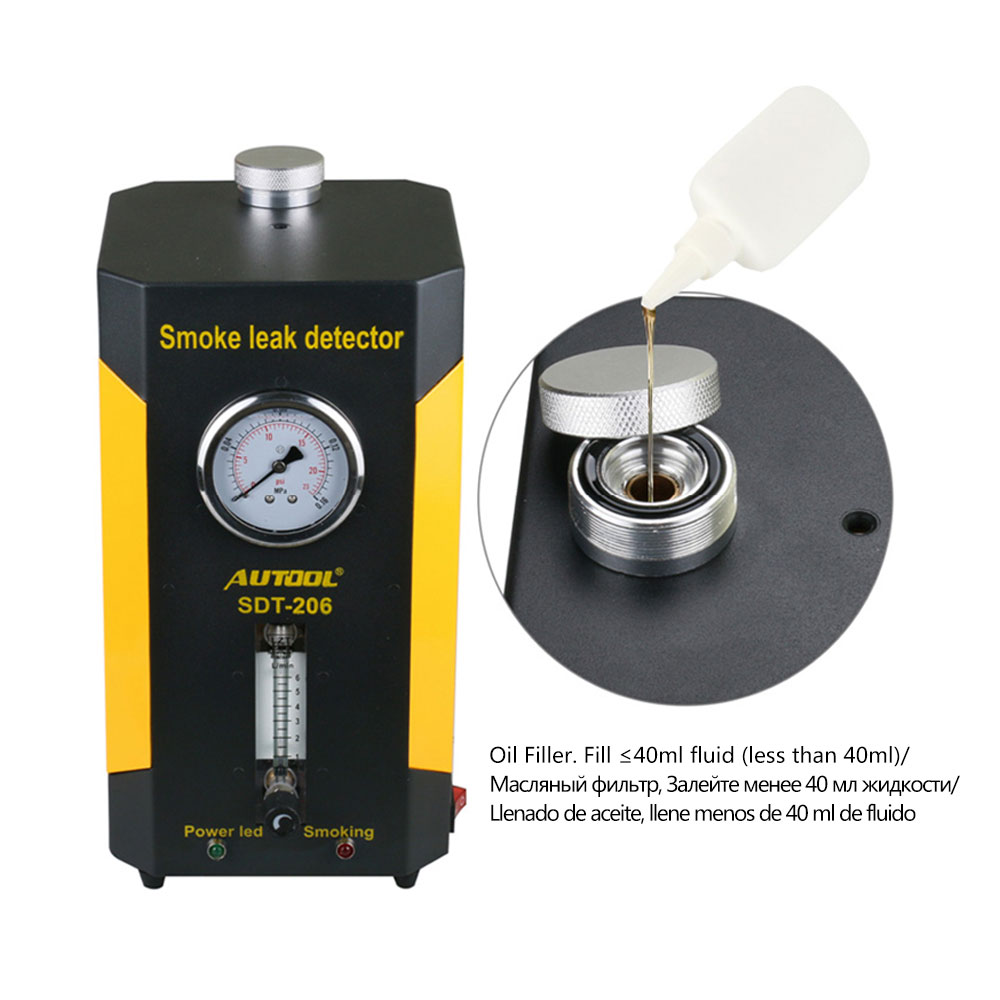

Please fill fresh oil with equipped oil bottle.

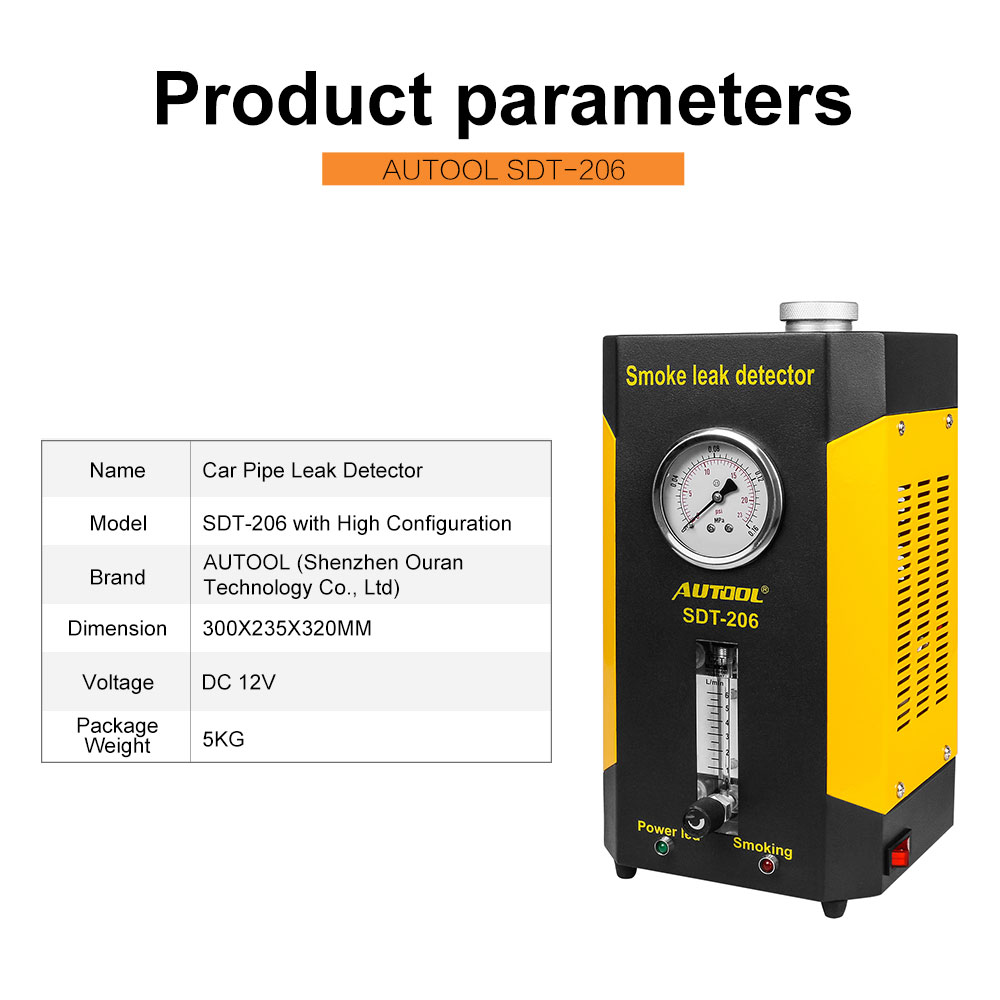

Specification :

Power: DC12V, vehicle battery
Smoke output value: 6l/min
Built-in air supply

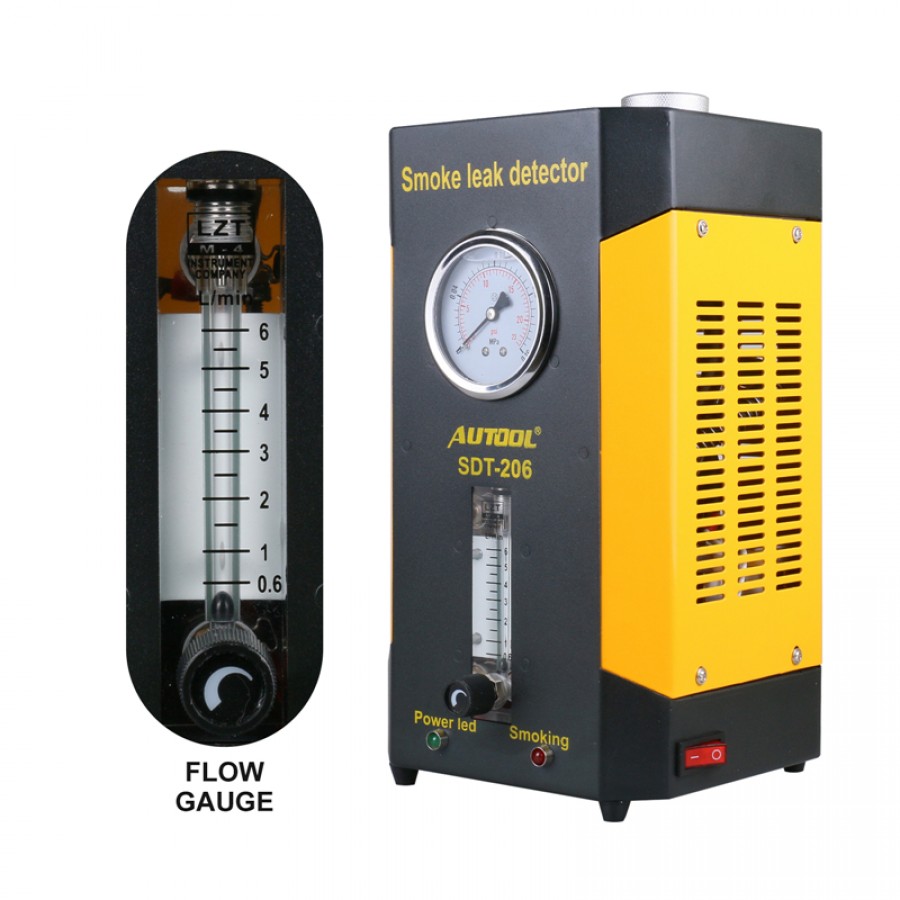

Controllable flow value

sdt206_05
sdt206_07
sdt206_09
sdt206_12
sdt206_13

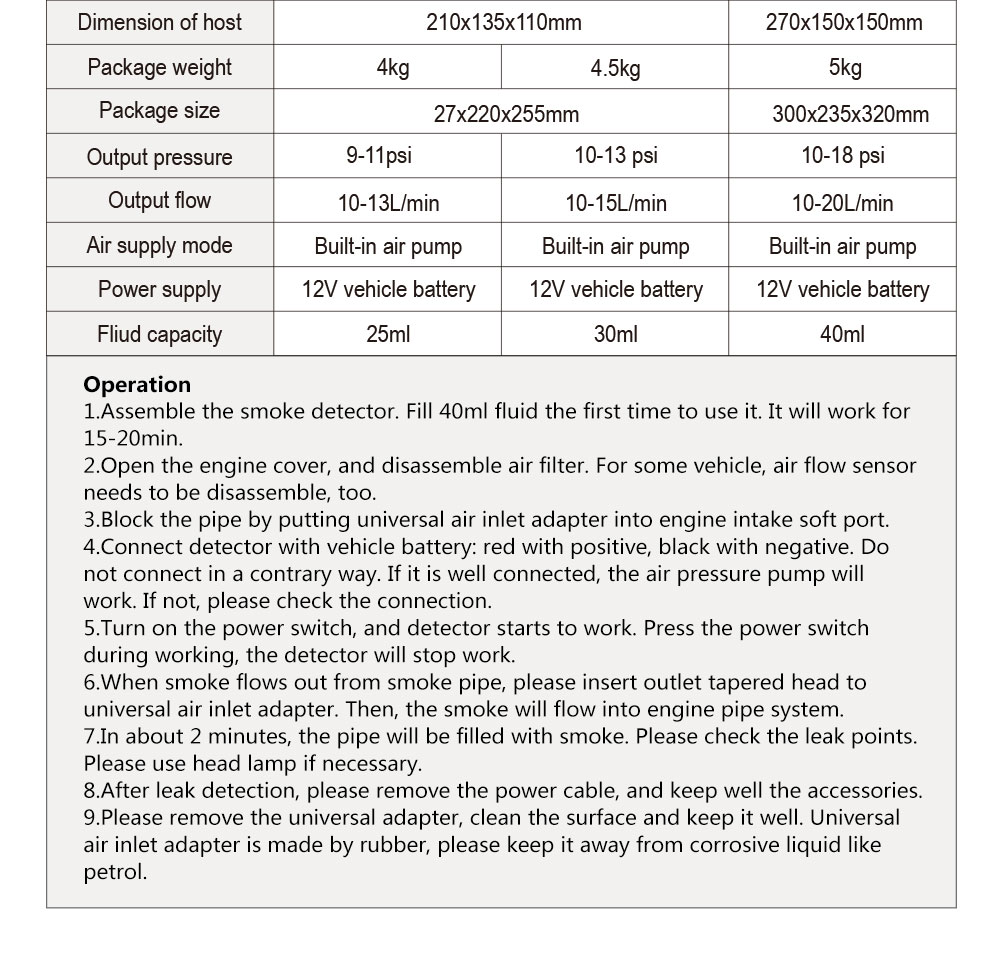

How to use:

1.Open the engine cover, and hang the detector in the cover.
2.Disconnect the pipe that needs to be connected with detector. If the pipe needs to be disconnected in the middle.
Please secure the other side with a rubber stopple.
3.Secure this side with proper taper stopple/pipe, and connect it with smoke output tube.
4.Connect detector with DC12V battery: red with positive, black with negative. Do not connect in a contrary way.
5.Turn on the power switch, and detector starts to work.
6.In about 3 minutes, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.
7.After leak detection, please connect well the wires and pipe.

8.Notes:

* Please do leak detection away from smoke-sensitive parts.
* Do not run the detector over 8 minutes. It needs interval rest.
* The detector has protector. If it exceeds working limit, it will power off automatically. In this condition, please operate it later.
* The round parts of this detector is with temperature, be careful to avoid scalding injury.

sdt206_11
sdt206_10
sdt206_06

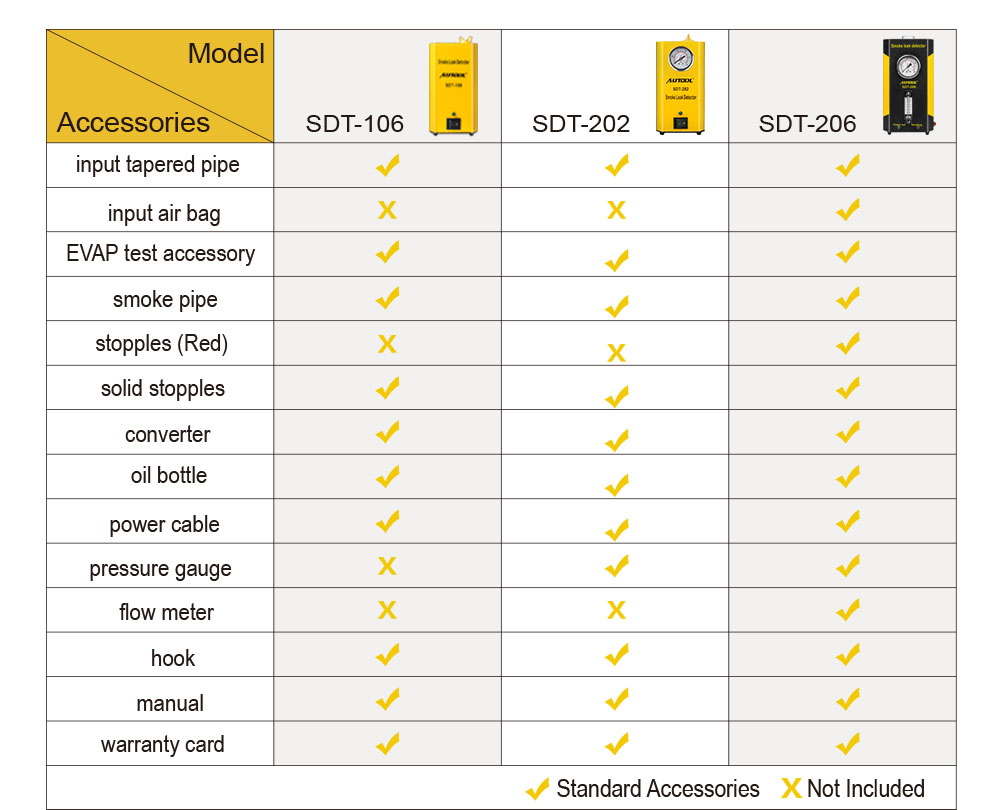

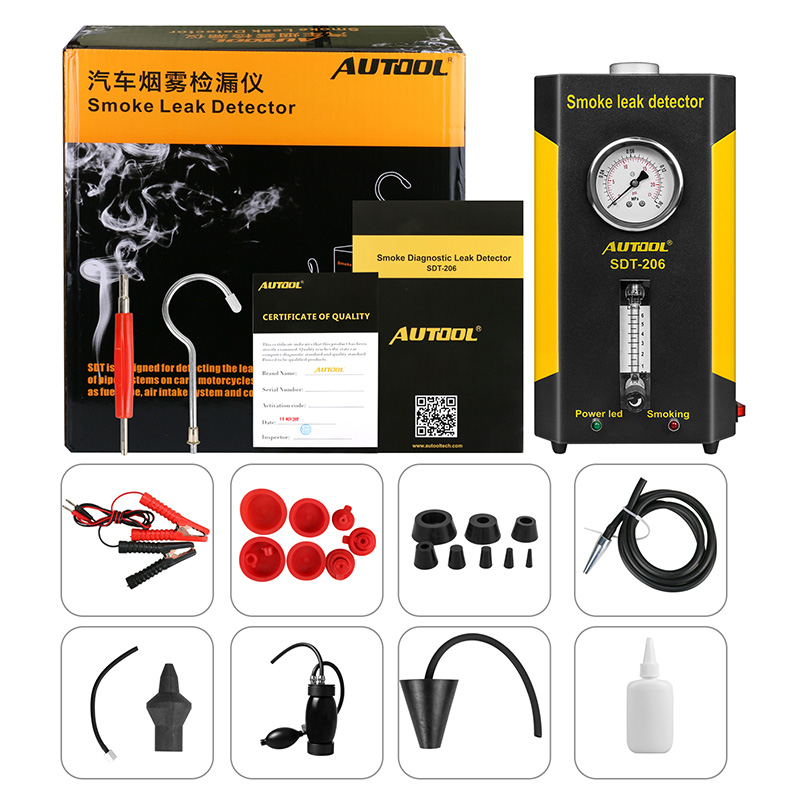

Packing List:

1. Main Unit
2. Hook (with hand-tighten nuts)
3. Smoke output tube
4. Power cable
5. Rubber stopples (with serial specification)
6. Taper stopple
7. Taper pipe
8. 30ml oil bottle
9. User manual
