Autos Pipe Systems Smoke Leakage Detector Diagnostic Tool SDT-106
This is a professional auto pipe leak detect tool. It will help us position leakage on any pipe system
quickly and accurately, such as EVAP system, Intake system, exhaust system...and so on.
Feature:
SDT-106 is designed for detecting the leakage of pipe systems on cars, motorcycles, even boats;
Detect fuel pipe, air intake system and cooling tank;
Fit for all pipe systems oil pipe leakage detect, including EVAP.
EVAP:
EVAP is a fuel evaporation control system used to collect and deal with fuel vapor, to prevent fuel vapor leakage.
If the leak will pollute the atmosphere and even cause the vehicle to spontaneous combustion.
Plus this set of accessories can detect the smoke of the EVAP system, check whether there is leakage, broken, enhanced traffic safety.
Working principle:
create smoke by atomization baby oil through the equipment and sent smoke to sealed car pipeline system (Such as air intake systems, exhaust systems, fuel systems, air conditioning systems, etc.);
Where there is smoke in the pipeline, there is a leak;
With smoke detectors to check the car pipeline, will not have impact on the car system.
Maintenance:
With long time high temperature, the smoke and oil will oxidize and deteriorate.
It will infect the service life of smoke generated part, so please change smoke and oil regularly.
1. Before filling fresh oil, please pour out the remaining oil in the detector.
2. When the smoke output has water drops, please replace with fresh oil.
3. Liquid paraffin and baby oil are OK.(Liquid is not included in the package)
Please fill fresh oil with equipped oil bottle.
Product Information:
Power: DC12V, vehicle battery
Liquid: liquid paraffin or baby oil
Smoke output value: 6L/min
Built-in air supply
How to use:

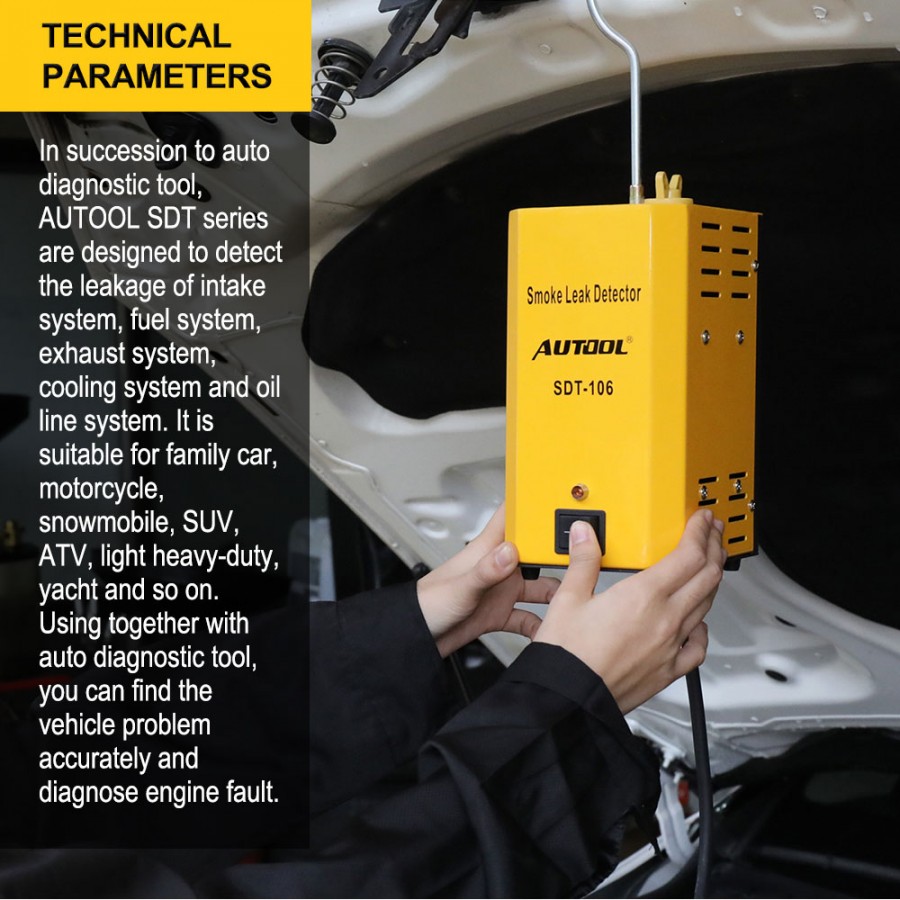

1.Open the engine cover, and hang the detector in the cover.
2.Disconnect the pipe that needs to be connected with detector. If the pipe needs to be disconnected in the middle. Please secure the other side with a rubber stopple.
3.Secure this side with proper taper stopple/pipe, and connect it with smoke output tube.
4.Connect detector with DC12V battery: red with positive, black with negative. Do not connect in a contrary way.
5.Turn on the power switch, and detector starts to work.
6.In about 3 minutes, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.
7.After leak detection, please connect well the wires and pipe.
8.Notes:
* Please do leak detection away from smoke-sensitive parts.
* Do not run the detector over 8 minutes. It needs interval rest.
* The detector has protector. If it exceeds working limit, it will power off automatically. In this condition, please operate it later.
* The round parts of this detector is with temperature, be careful to avoid scalding injury.

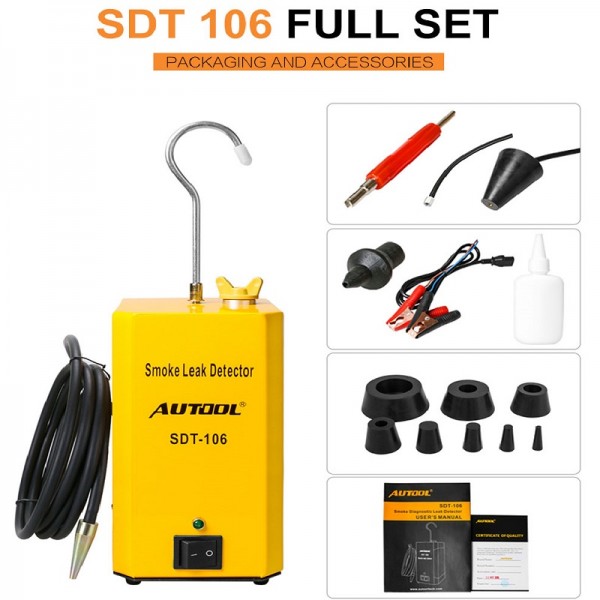

Packing List:
1.Main Unit
2.Hook
3.Rubber stopples
4.Taper stopple
5.Taper pipe
6.30ml oil bottle(oil not included)
7. User manual
