Product Description
2. It is forbidden to use a cleaning agent instead of the detection liquid, because the cleaning agent is generally corrosive and will cause damage to equipment and injector seals;
3. It is forbidden to use gasoline instead of cleaning agent or test liquid, which is dangerous and easy to cause safety hazards;
4. Please use absolute ethanol (industrial alcohol) or other non-corrosive liquids as the detection liquid (generally the detection liquids are colorless and transparent, no irritating odor liquid);
What is a cleaning agent? The cleaning agent is used to clean the attachments (carbon deposits) on the fuel injection nozzle. It is generally highly corrosive and flammable. It should be kept away from the fire source and avoid contact with the skin when used. Use it in the ultrasonic cleaning tank of the injector cleaner;
What is a test solution? The test liquid is used to test and judge the quality of the fuel injection nozzle. It is a colorless and transparent liquid with no irritating odor, non-corrosiveness, and not easy to emit, but used in the measuring cylinder of the fuel nozzle cleaning machine;

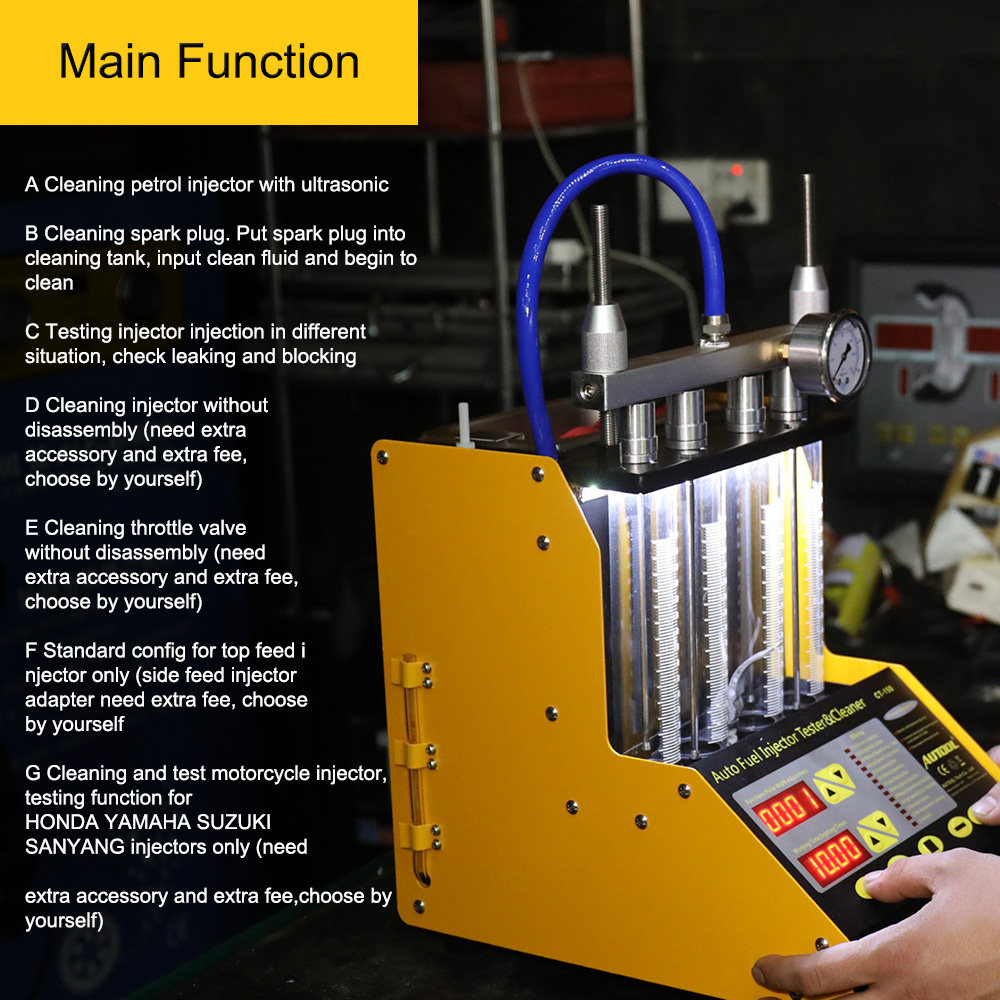

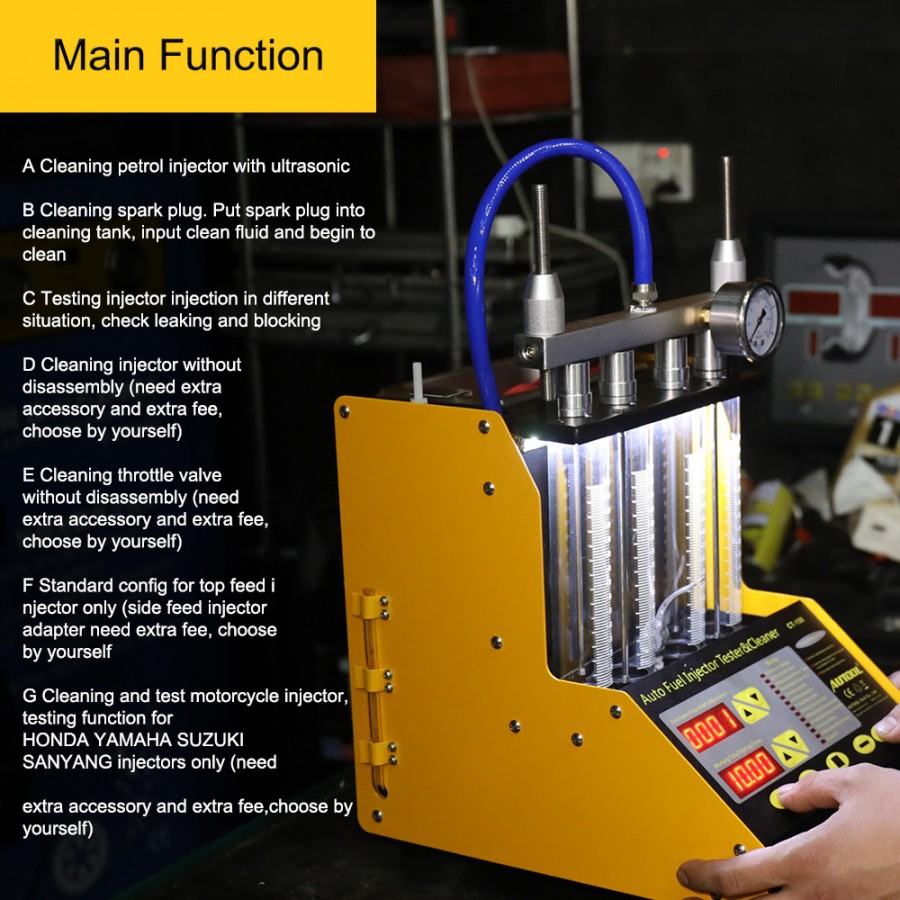

Main Function:
A Cleanning petrol injector with ultrasonic
B Cleanning spark plugPut spark plug into cleaning tank ,input clean fluid and begin clean
C Testing injector injection in different situation, check leaking and blocking
D Cleanning injector without disassembly (need extra accessory and extra fee,choose by yourself)
E Cleanning throttle valve without disassembly. (need extra accessory and extra fee,choose by yourself)
F Cleanning and test motorcycle injector,testing function for HONDA YAMAHA SUZUKI SANYANG injectors only, (need extra accessory and extra fee,choose by yourself)

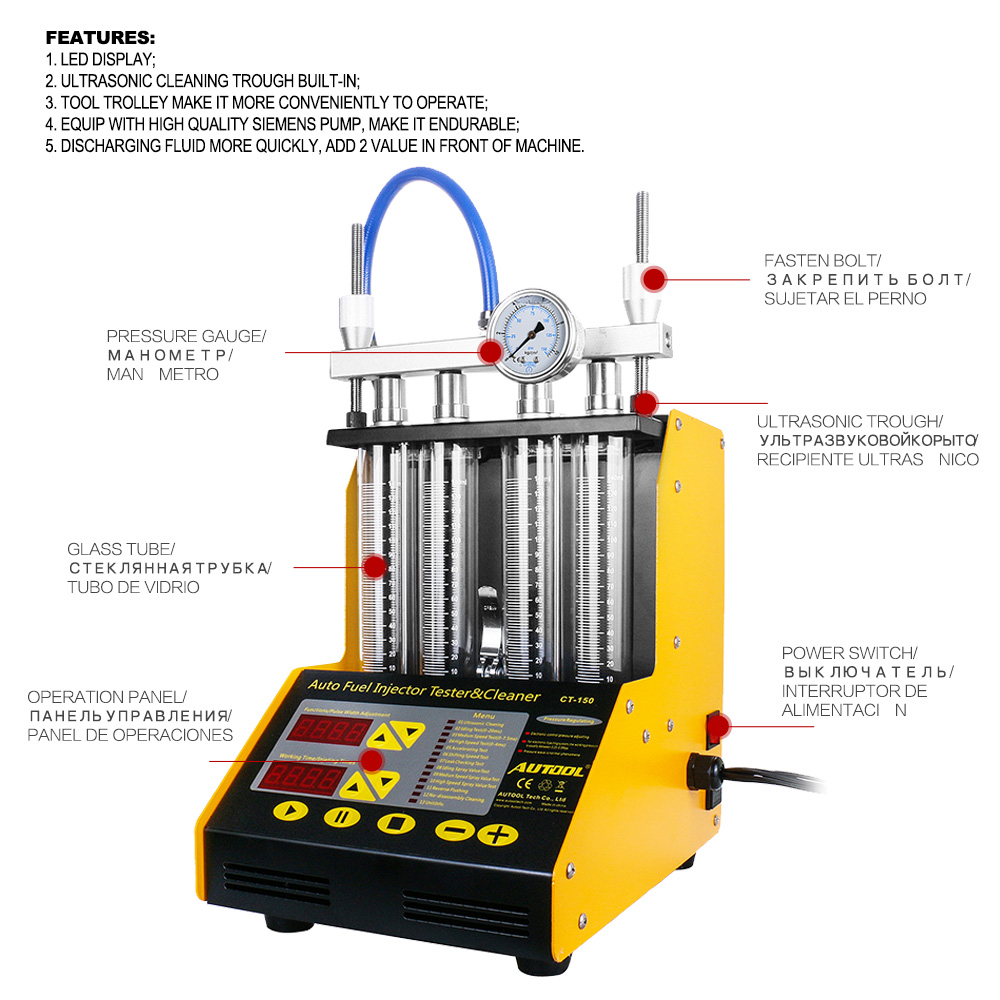

FEATURES:
1. LED display;
2. Ultrasonic cleaning trough built-in;
3. Tool trolley make it more conveniently to operate;
4. Equip with high quality SIEMENS pump, make it endurable;
5. Discharging fluid more quickly, add 2 value in front of machine.

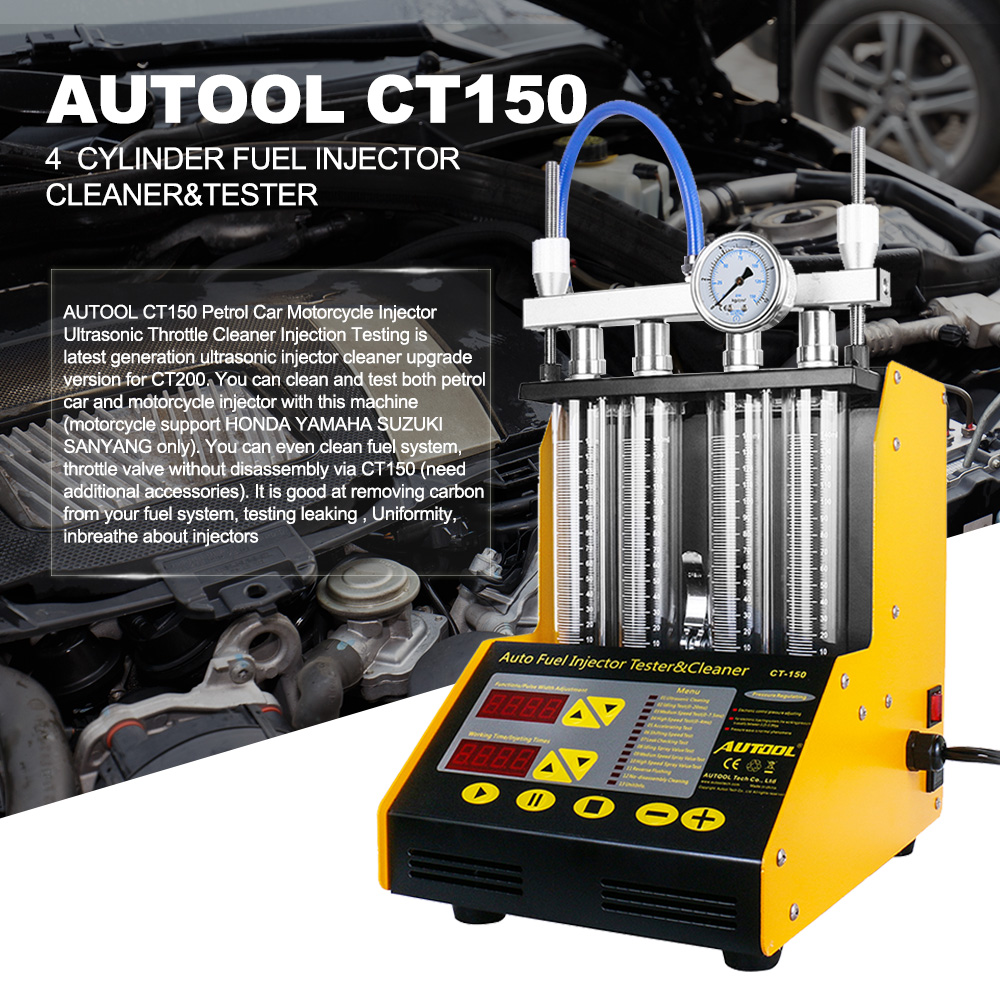

AUTOOL CT150 Petrol Car Motorcycle Injector Ultrasonic Throttle Cleaner Injection Testing
This latest generation ultrasonic injector cleaner upgrade version for CT200.
We can cleaning and testing both petrol car and motorcycle injector with this machine.(motorcycle support HONDA YAMAHA SUZUKI SANYANG only)
We can even clean fuel system, throttle valve without disassembly via CT150 (need additional accessories)
It is good at remove carbon from your fuel system, testing leaking ,Uniformity,inbreathe about injectors

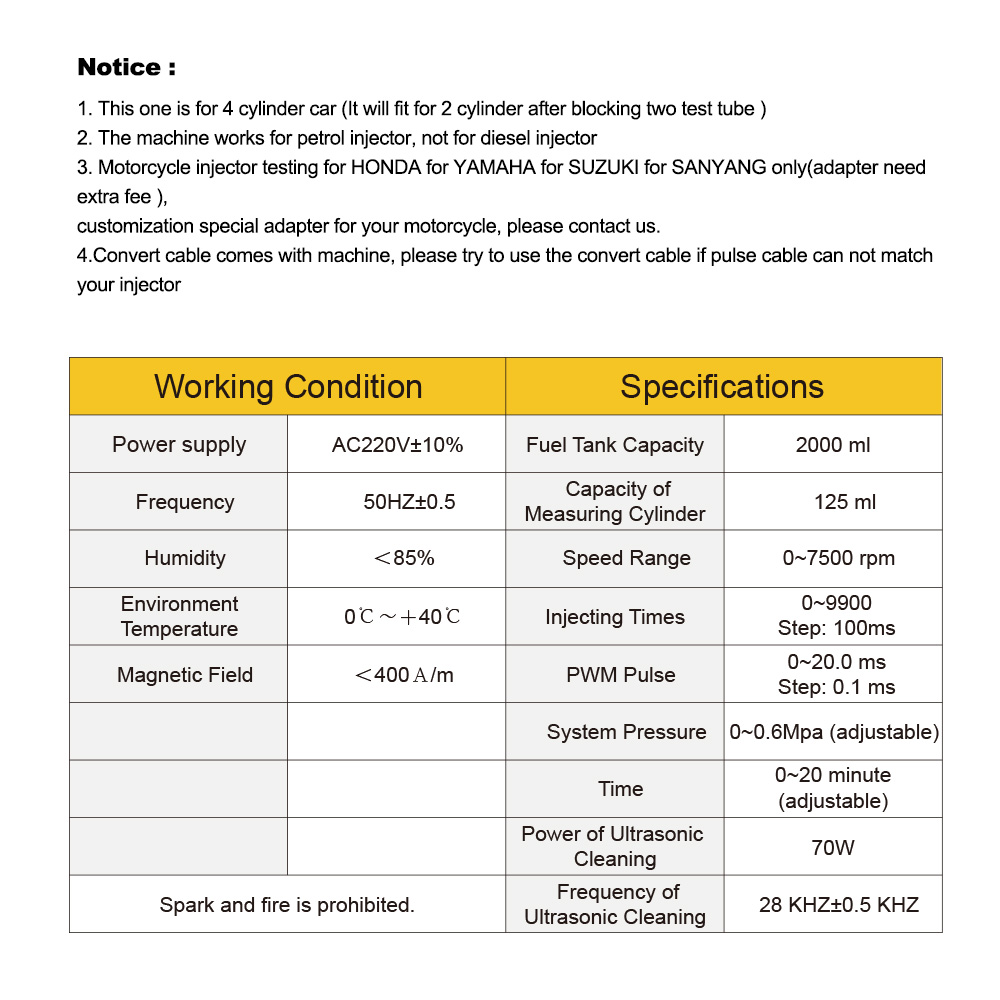

Notice:
1. This one was for 4 cylinder car (It will fit for 2 cylinder after blocking two test tube )
2. The machine work on petrol injector, not for diesel injector
3. Motorcycle injector testing for HONDA for YAMAHA for SUZUKI for SANYANG only(adapter need extra fee ), customization special adapter for your motorcycle, please contact us.

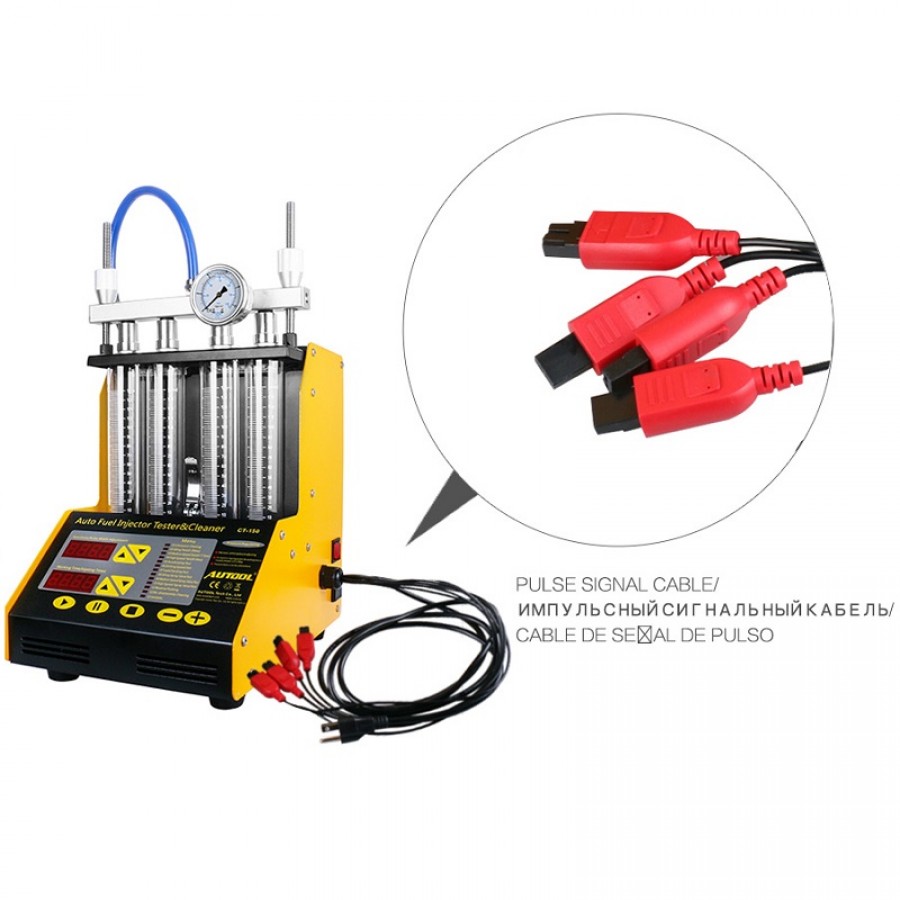

4.Convert cable come with machine, please try to use the convert cable if pulse cable can not match your injector
The CT150 cleaning machine how to work:
1. Clean injector's outside with gasoline or cleaning liquid before open machine
2. Putting injectors in ultrasonic bathtub after the outside of injector are free of dirt.
3. Turn on ultrasonic systempulsed allowing the ultrasonic energy to dislodge any particles even build-up inside the injectors.
4. Fixed injectors on main machine
5. Testing injectors for resistance, shorts, and current draw
6. Performing leak test, spray pattern, and flow rate testing on flow bench.
7. The injectors are now returned to the flow bench for retesting of all functions.
There are special injecotr liquid for test and clean. You can find from your local market easily. For testing, if there is no special liquid, it can be use alcohol for testing. For cleaning, it has to be use with special injector clean liquid.
