Product Description
ADS1806 A2 4 In 1 Bluetooth Automotive Scan Tool for OBD2/ VW/Toyota/Hyundai Support Android support both Bluetooth and USB connection, support WINDOWS 7, support print test result by PC, is high intelligent scan tool.
Support Andriod System by bluetooth connection.
Support WINDOWS 7 by USB Connection.
Support Andriod System by bluetooth connection.
Support WINDOWS 7 by USB Connection.
ADS1806 A2 4 In 1 Bluetooth Automotive Scan Tool for OBD2/ VW/Toyota/Hyundai Support Android
Language: English
Top 5 Reasons to Get ADS1806 A2 4 In 1 Scanner:
1. Software lifetime free update.
2. With free OBD2 software, it support almost all vehicle from European, Asian and America basic diagnose function, support VW, Toyota and Hyundai full system diagnose, support CAN BUS system.
3. Support Andriod System by bluetooth connection.
4. Support WINDOWS 7 by USB Connection.
5. Support stockpiling record test results, the testing process recording and playback functions, print out test result.( Only PC version support this function)
ADS1806 VW SERIES Special Features:
Work with Volkswagenj, Audi, Seat, Skoda sold worldwide since 1990.
Read and erase Diagnostic Trouble Codes (DTCs) of engine, ABS, airbag, A/T, radio, A/C, cent., elect steering wheel, instruments and immobilizer, etc. (78 Systems).
Read and clear generic trouble codes of cars using KWP1281, ISO 9141-2(CARB), ISO 14230(KWP2000) and ISO 15765(CAN) protocols.
Turn off MILs of engine, airbag, ABS, A/T and most other systems.
CAN (Controller Area Network) capability.
Reset oil service light.
Support all test modes, including ECU Information, read fault codes, measuring blocks, clear fault codes, basic settings, adaptation, single reading, output tests, code module, login, chassis num adjust, end output, readiness.
Display I/M readiness status.
Support special function:
1) Reset oil lamp, IN1 and IN2.
2) Clear the value of self-learning.
3) Adaptation of ECU and throttle.
4) Adaptation of waste gas recirculation’s value.
5) Basic settings of automatic transmission.
6) Reset maintenance lamp.
7) Remove or program remote car key, dashboard.
8) Reset steering angle sensor.
9) Fuel level sensor adaptation.
10) Air bag lift / activation, dashboard language.
11) Basic settings for air conditioner / heating system.
12) Program new airbag control module.
ADS1806 Toyota SERIES Special Features:
Work with Camry, Corola, Crown, Cruiser, Land Cruiser, Highlander, Prado, Prius, Reiz, Terios, Vios, Yaris, Verso and Zelas.
Test more than 53 system
Read and erase Diagnostic Trouble Codes (DTCs) of engine, ABS, airbag, A/T, radio, A/C, ACC, IMMO and so on.
CAN (Controller Area Network) capability.
Support all test modes, including ECU Information, Read Data Trouble Code, Read Historical Data Trouble Code, Clear Data Trouble Code, Read Dynamic Parameter, ACTURATOR TEST.
ADS1806 Hyundai SERIES Special Features:
Work with Hyundai IX35, IX30, I30, SONATA, SONATA NFC, ELANTRA, ELANTRA YD, ACCENT, VERNA and TUCSON.
Read and erase Diagnostic Trouble Codes (DTCs) of engine, ABS, airbag, A/T, radio, A/C, ACC, Body Electrical Control, Dashboard Area (IPM), Smartkey (SMK), BCM, Electrical
Steering Sysstem and PIC etc.
Read and clear generic trouble codes of cars using KWP1281, ISO9141-2(CARB), ISO 14230(KWP2000) and ISO 15765(CAN) protocols.
CAN (Controller Area Network) capability.
Support 8 systems
1) Engine
2) Transmission
3) ABS\TCS\ESP
4) SRS
5) (AC)
6) 4WD control
7) Body Electric Control (dashboard area of the module
8) SMARTKEY(SMK)
Support special function for partial car models:
1) Code (special features) remote control password protection (CAN BUS)
2) The electronic power steering system (special function) (CAN BUS)
3) Key anti-theft system (special functions) (CAN BUS)
4) PIC (special features): distribution module, all systems, intelligent key code, smart key module.
ADS1806 A2 4 In 1 Scanner Specifications:
Material: Plastic
Color: Black & Silver
Weight: 0.25kg
Power: 2.5W
Work voltage: 12V
Work current: 0.2A
Work temperature: -10℃~40℃
Ambient temperature: -20℃~40℃
Relative humidity: < 90%

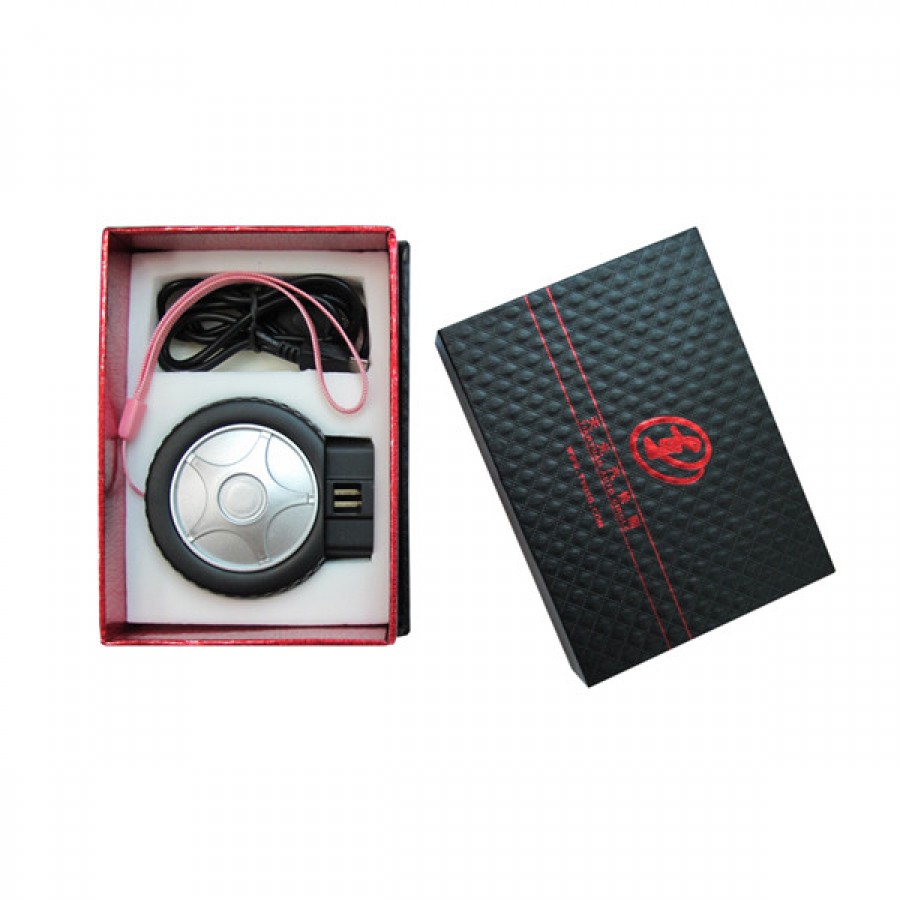

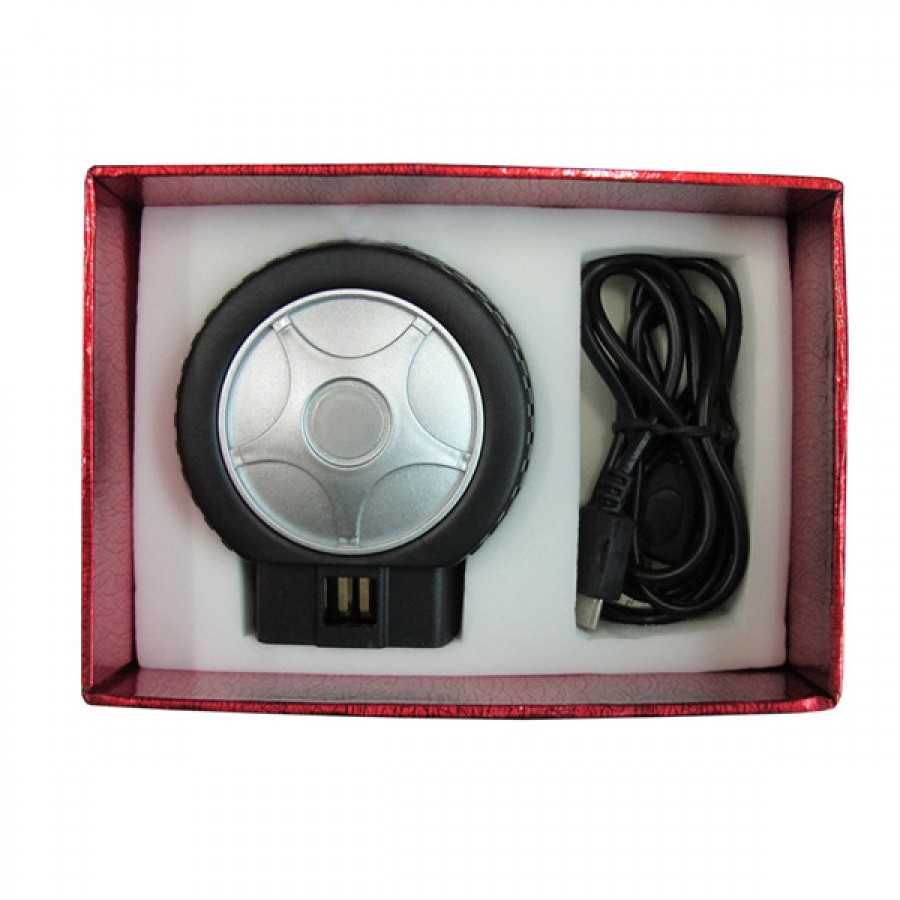

Package List:

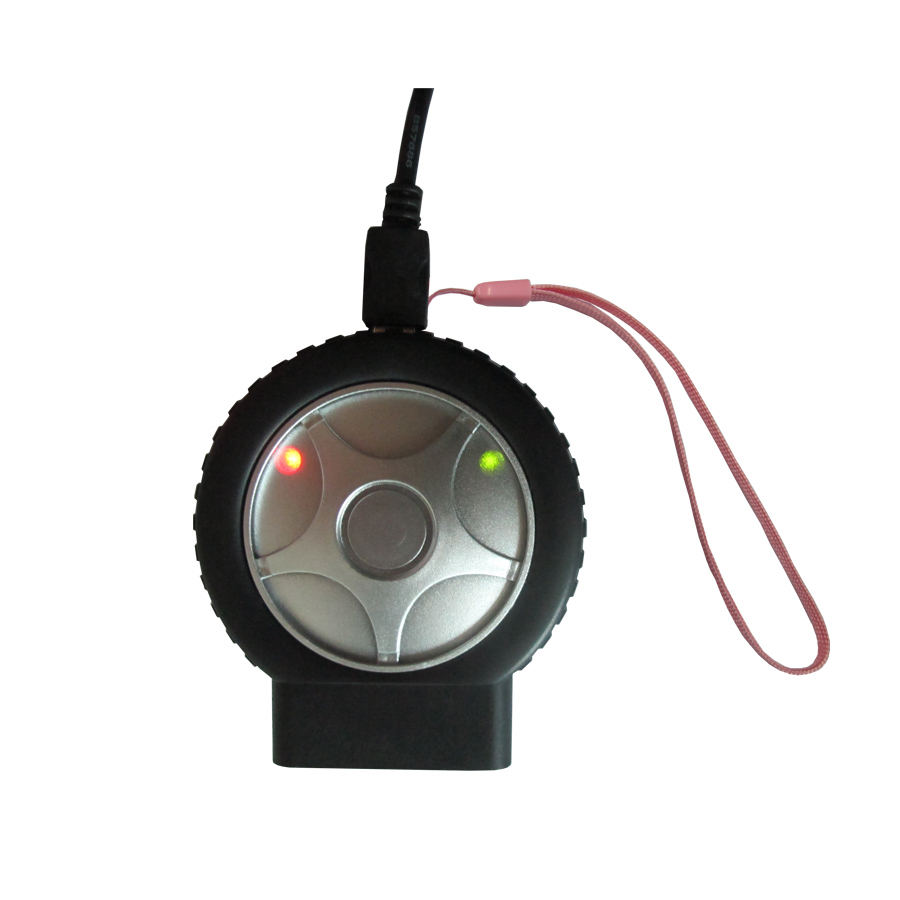

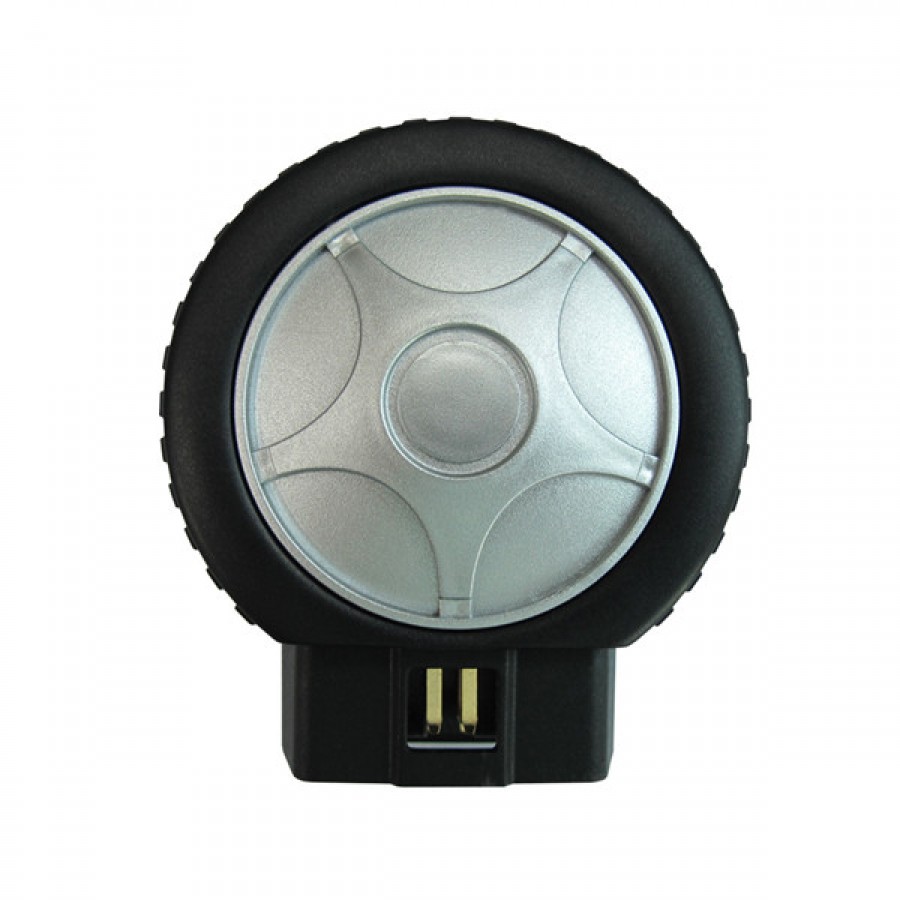

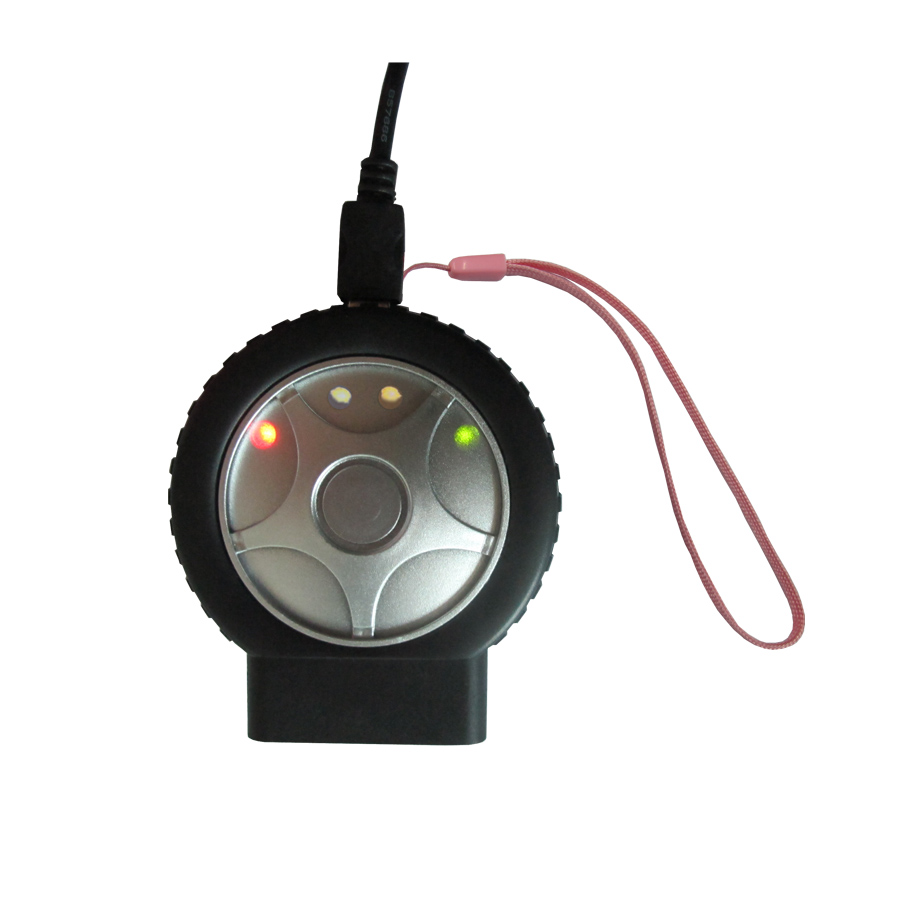

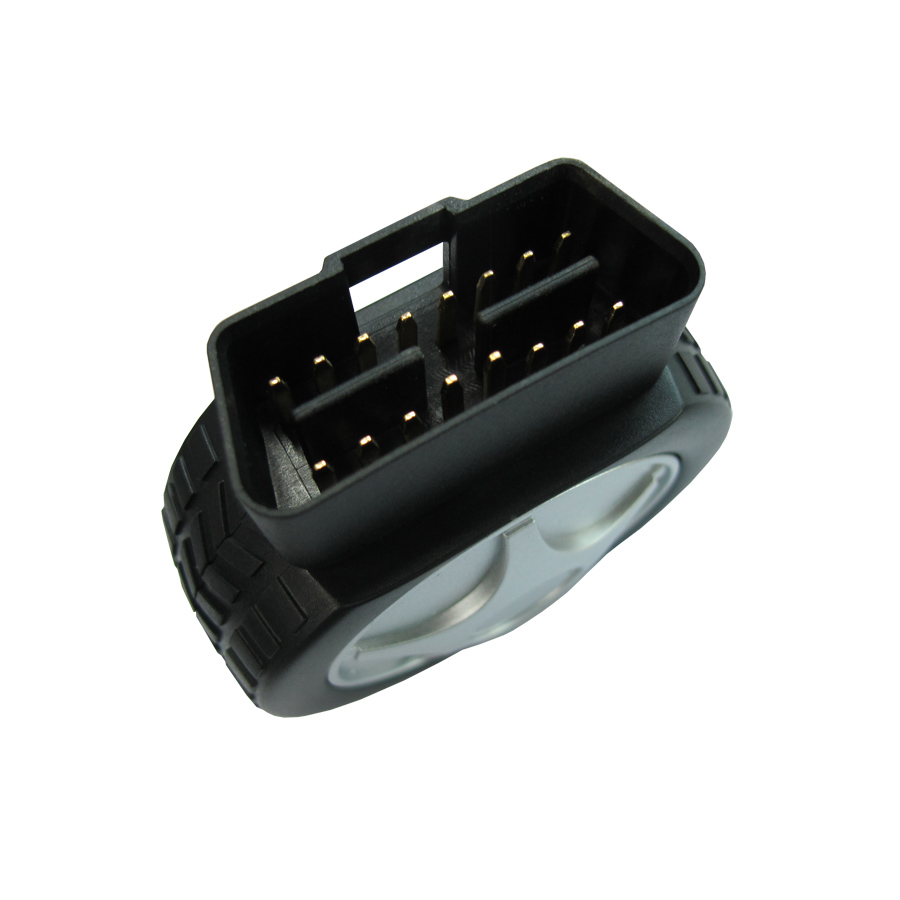

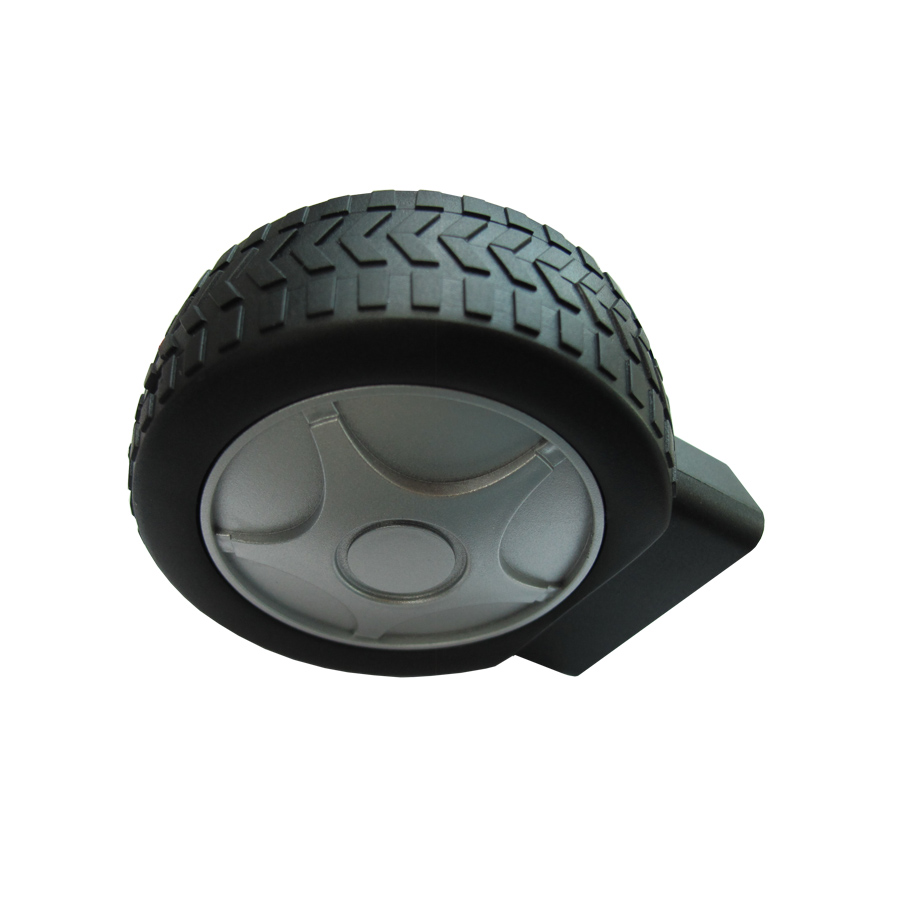

1pc x ADS1806 MAIN UNIT (4 in 1)

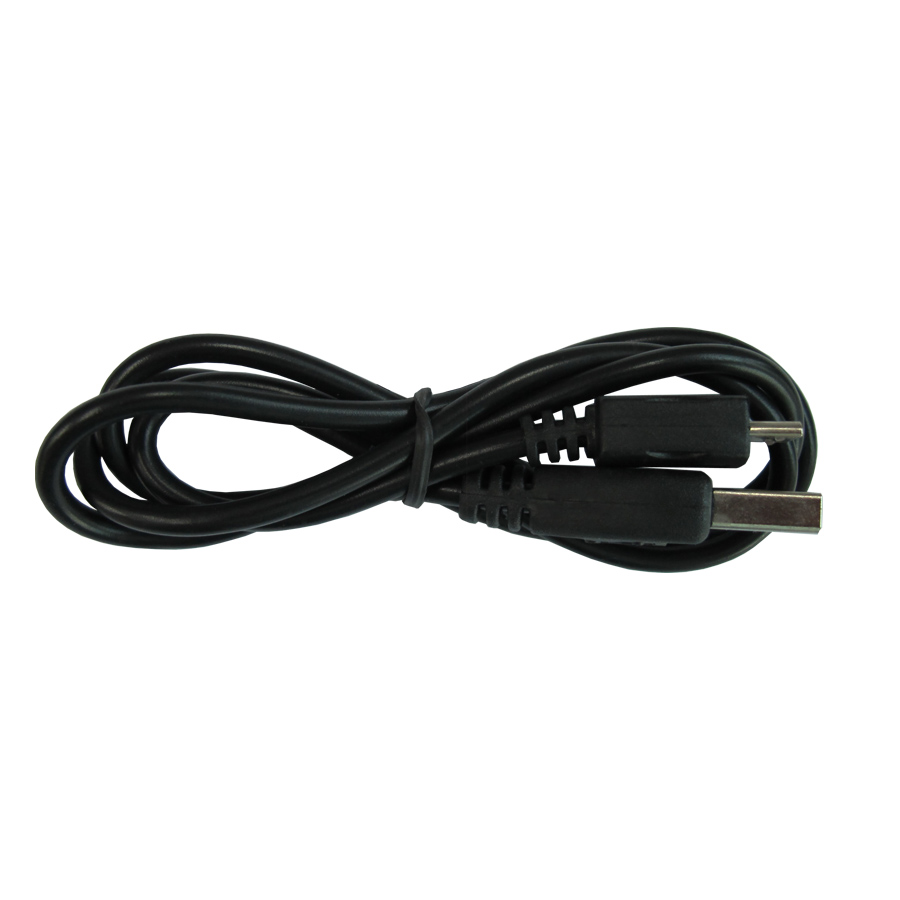

1pc x USB cable
1pc x CD
