Product Description
SEC-E9 CNC Automated Key Cutting Machine Get Free Ford Tibbe Jaws FO21 Clam
SEC-E9 Description:
SEC-E9 portable metal desktop air cooling fully automatic smart key cutting machine is able to cut standard keys and high security keys, such as BMW, VW, HONDA, OPEL,etc, SEC-E9 also supports to cut house keys, including dimple keys, tubular keys, single standard keys and motorcycle keys. Ford Tibbe keys and LDV keys are available to cut. SEC-E9 is a good choice for locksmith since you do not need to buy other small key cutting machines for house keys, just need to buy the corresponding clamps for different key types. Moreover, SEC-E9 can cut a new key without original key. It is the main difference from the traditional manual key cutting machine.
Top 10 Reasons to Get SEC-E9 CNC Automated Key Cutting Machine:
1. Latest Version: V16.0.0.3 Newly added key data includs: Scion, Toyota, Lexus, Renauit, Nissan, Acura, Subaru, Chrysler
2. Can directly search key bitting number by key code for some keys. No need to search from Instacode
3. Support all key lost, can cut a new key by bitting number
4. Multi-Language: English, Spanish, French, German, Italian, Korean, Portuguese, Russian, Turkish, Czech.
5. Can cut veritcal milling, flat milling, internal milling and external milling.
6. Work on Car, Truck, Motorcycle, House Key, Dimple & Tubular Keys, cut automobile keys,motorcycle keys ,dimple keys, tubular keys, and single-sided standard keys.
7. Can cut Tibbe keys and LDV keys
8. Auxiliary Clamp is available
9. CE Approved
10. Free Update Online
SEC-E9 CNC Automated Key Cutting Machine Features:
1. 8" capacitive tablet PC as display screen,operate quickly;smoothly,just one step for upgrade.
2. 1:1 copy a plain-milling key through fuzzy detection for keys no deta in the machine.
3. Built-in database, support key missing teeth inquiry;
4. Light weight,small size,poertable for mobile,easy to work outside.
5. Equipped with both decoder and cutter.Decoding and cutting can be done at one time.
6. Interpretation and cutting can be completed at one time;
7. Support plain milling key, face milling key, Allen key(F021), Stiletto key andCylinders key;
8. Repair the wear keys to recover the original precision.
9. One car key clamp supports to cut both standard keys and laser keys.
10.Multiple optional clamps and assistant
11.Clamps complete cutting household keys and special cars keys.
12.Intersecting roller guide for X & Y axis.
13.Professionla after-sale technical service,life time warranty & free upgrade service.
14.Ball screw to drive Z axis makes cutting powerful and in high precision
15.Cross roller guided XY axis makes machine more stable and accurate
16.Spindle driven by two spindle belts;Powerful motor in 27W and DC 24V.

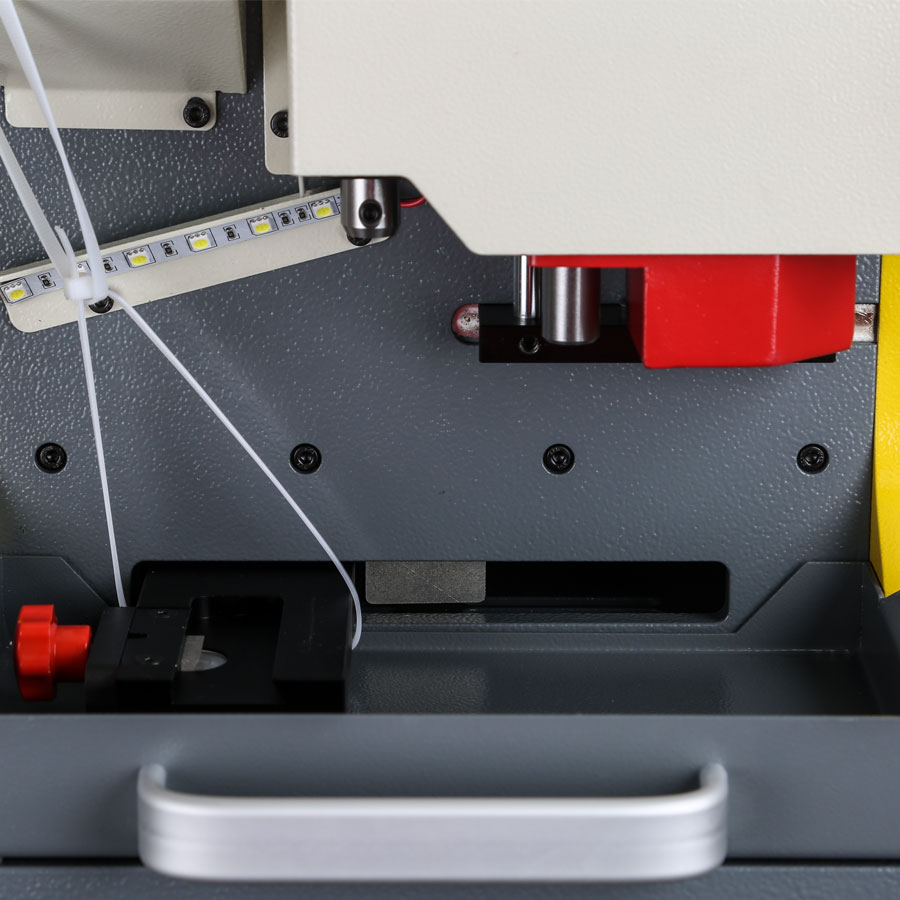

17.Wide and bright LED light brings easily operation at night.
18.Replaceable clamp can be changed according to the key types.
19.Emergency stop switch Stable and reliable One press stop,Turn the switch to clockwise to swtich on and press it to switch off.
20.Matte aluminum handle,Durable,anti-fingerprint.
SEC-E9 Key Cutting Machine Newly Update(2018-12-10)
Software version is 16.0.0.3, Database version is 15.16.
Newly added key data includes:
1. YM23 8-cut（IC card 1896）key
2. FIAT 500L key and key code
3. ONDA motorcycle CB150 key
4. Oldsmobile, Mahindra, maruti key and key code
Improved key data includes:
1. Improved Hyundai,Kia,Toyota menu: add new choices of manufacture year in and after 2015.
2. Hyundai,Kia,Toyota key and key code
3. HONDA（IC card 982）key code
4. Mitsubishi,Maserati,Chevrolet key code
Two ways to enter key data:
1. Search car manufacturer, model and manufacture year
2. Search key blank or IC card
Three ways to get key cuts:
1. decode original keys
2. Input key cuts
3. Search key code

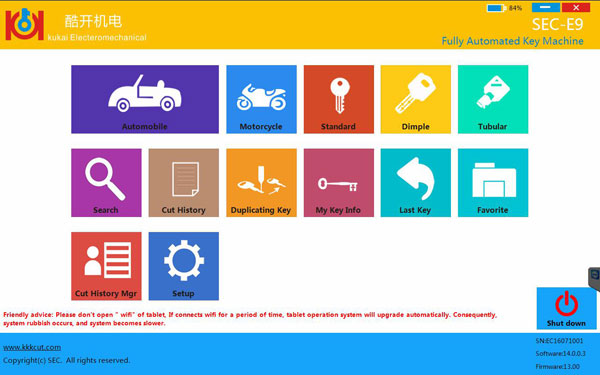

Quick Function of SEC E9:
Key data search
Key cutting history
Frequently used key data registration
Last key

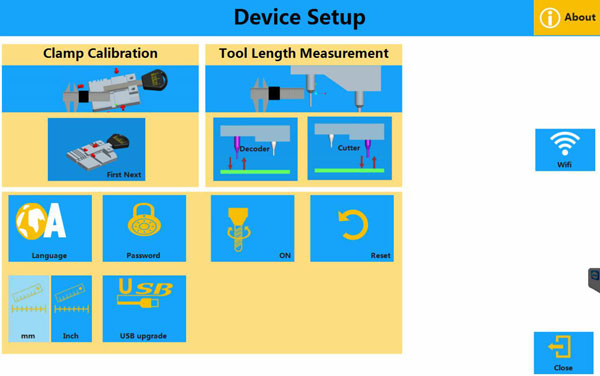

Clamp calibration
Tool length calibration
Automatic setting of clamp origin
Checking calibration value
SEC-E9 Key Cutting Machine Car List:
Acura/Alfa Romeo/Aston Martin/Auti/BMW/Bentley/Buick/Cadillac/Carryboy/Chevrolet/Chrysler/Citroen/Dacia/Daewoo/Daihatsu/Dodage/Eagle/Ferrari/Fiat/ Ford(Australia)/Ford(Europe,USA)/Fuso Trucks/GMC/Hino Truck/Holden/Honda/Hummer/Hyundai/Infiniti/Isuzu/Iveco/Jaguar/Jeep/Kia/LDV/Lamborghini/
Lancia/Land Rover/Lexus/Lincoln/MAN Trucks/Mack Trucks/Maserati/Mazda/Mercedes/Mercury/Mini/Mitubishi/Neiman/Nissan/Opel/Peugeot/Plymouth/
Pontiac/Porsche/Range Rover/Renault/Rolls Royce/Rover/Saab/Saturn/Scania/Scion/Seat/Skoda/Smart/Ssangyong/Subaru/Suzuki/Tata/Toyota/Triumph/
Volkswagen/Volvo/Volvo Trucks
SEC-E9 Key Cutting Machine Household Key List:
AGA/ASSA/ATP/AXA/Abloy/Absa/Abus(SD)/Ace/Alpha/American Padlock/Anchor/Anker/Ankerslot/Atal(SD)/Atala/BAB/BKS/BMB/BTV/Basta/Batu/
Bauer/Bellville/Beram/Best/Beta/Brabantia/Briggs&Stratton/Brisant/Burg/CES(SD)/CIB/CL/Caver/Chicago(SD)/Chubb/Cisa(SD)/City/Clausor/
Colomenca/Corbin(SD)/CorbinRusswin/Corni/Cyber Lock/Dad/Detex/Diebold/Difi/Diplomat/Doblina/Dom(SD)/Dorma/Dubois/E-Z-SET/ERA/Elgin/Emhart/Emka/Etna/Eurolocks/Eurospec/Evva/FAB/FB/FFFacchinetti/FPB/FTH/Falcon/Fama/Feb/Flambo/Fort(SD)/Fral/ GEGE/GHE/GSA/Gete/Goa/GuLi/Guard/GuervilleRiquier/Hafele/Henkna/Hobes/Hon/Hudson/Hurd/Huwil/IFAM/Ideal/Ikea/Iseo(SD)/ JCB/JPM/JinDianYuanZi/Jore/Junkunc/Padlock/Kaba(SD)/Kale/Kasp/Keiper/Kiferm/Kwikset/LaFonte/Lane/Las/Legge/Lips(SD)/Lista/ Litto/Lockwood/Lowe&Fletcher(SD)/MCM/MEFA/MLM/Marco/Marks/Master/Mauer/Maxus/Merit/Meroni(SD)/MetalRousseau/ Mippart/Miwa/National/Neiman/Nemef/Nobo/Norwalk/ODA/Omec/PYCM/Papaiz/Penn/Pfaffenhain/Prefer/Presta/Protec/QLP/ Riople/Ronis(SD)/Royal/Ruko/Runo/Russwin/SOS/STA(SD)/Sama/Santos/Sargent/Sargent&Greenleaf/Schlage/Securemme/ Securicraf/ShangHaiQiuJing/Showa/Siam/Sofi/Sperrkolb/Squire/Strafor/Strattec/Sul/Talon/Technal/Teka/Technal/Teka/Teknion/ Terca/TesaThomee/Touch/Trelock/TriMark/TrioVing/UAP/Unifor/Union/VIP/Vachette/Vario/Veronelli/Vinco/Viro/Weiser/Weslock/
Whitco/Wigro/Wilka(SD)/Wilmont Breeden/Winkhaus(SD)/Yale(SD)/YueMa/Yvel/Zadi(SD)/Zwiss-Ikon
SEC-E9 Punch Key List
AGA/AGB/Abloy/Abus/Alpha/Atal/Atra/Avocet/Azbe/Baton/Bricard/CES/CVL/Cadman/Cays/Chubb/Cisa/Corbin/DOSSIV/DOM/Domus/
Esety/Ezcurra/FAC/FAG/GTV/Gerda/Goal/IFAM/Iseo/Kada/Kaken/Kale/Keso/Lince/Lips/Lock Focus/Lockman/M&C/M-loy/MCM/MLS/Magnum/Master/Mauer/Miwa/Mottura/Mul-T-Lock/Omec/Pfaffenhain/Potent/Royal/Guardian/STS/Securemme/Showa/Space/Squire/Tecon/Tesa/UCEM/Viro/WanJia/West/Wika/Winkhaus/Yale/Yardeni/Zadi
SEC-E9 Motorcycle Key List:
Aprilia/BMW Cycles/Ducati/Harley/Davidson/Honda Cycles/KTM/Kawasaki/Kymco Cycles/Moto Guzzi/Peugeot Cycles/Suzuki Cycles/Victory/Yamaha
SEC-E9 Tubular Key List:
AGA/Beaver/Bilma/Bumil/Chicago/Dynaconsult/Fort/LYF/Lowe&Fletcher/Meroni/R.O.C/Ronis/SAG/Sentry
SEC-E9 Automated Key Cutting Machine Specification:

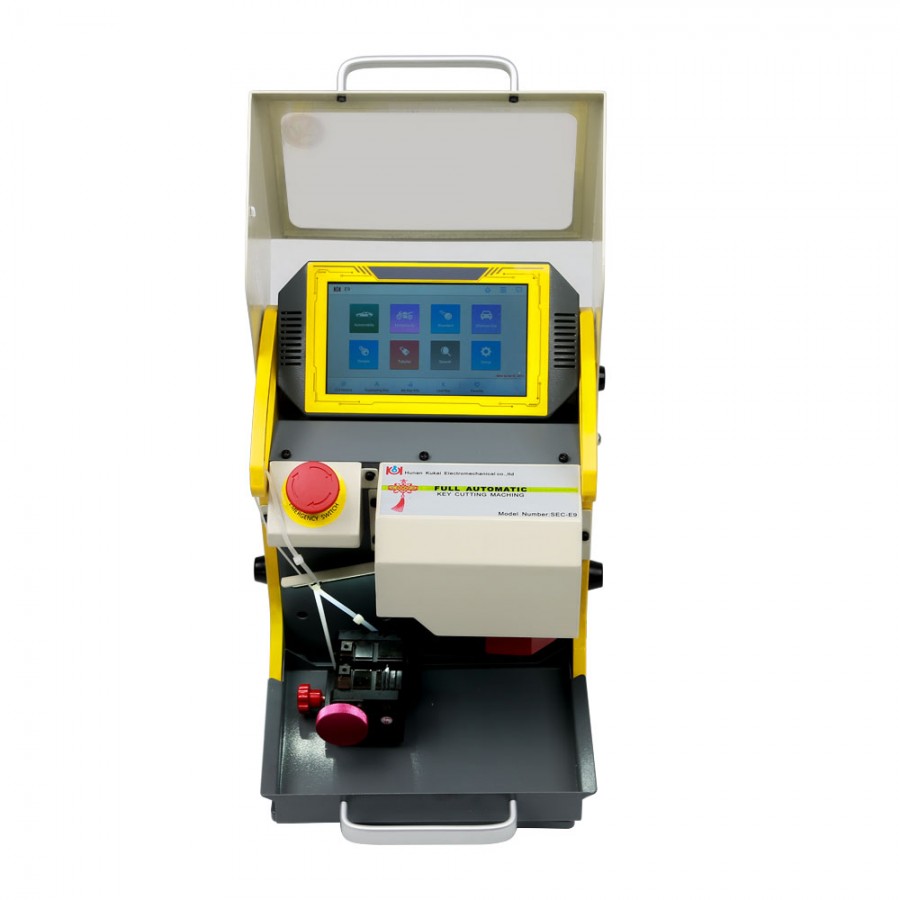

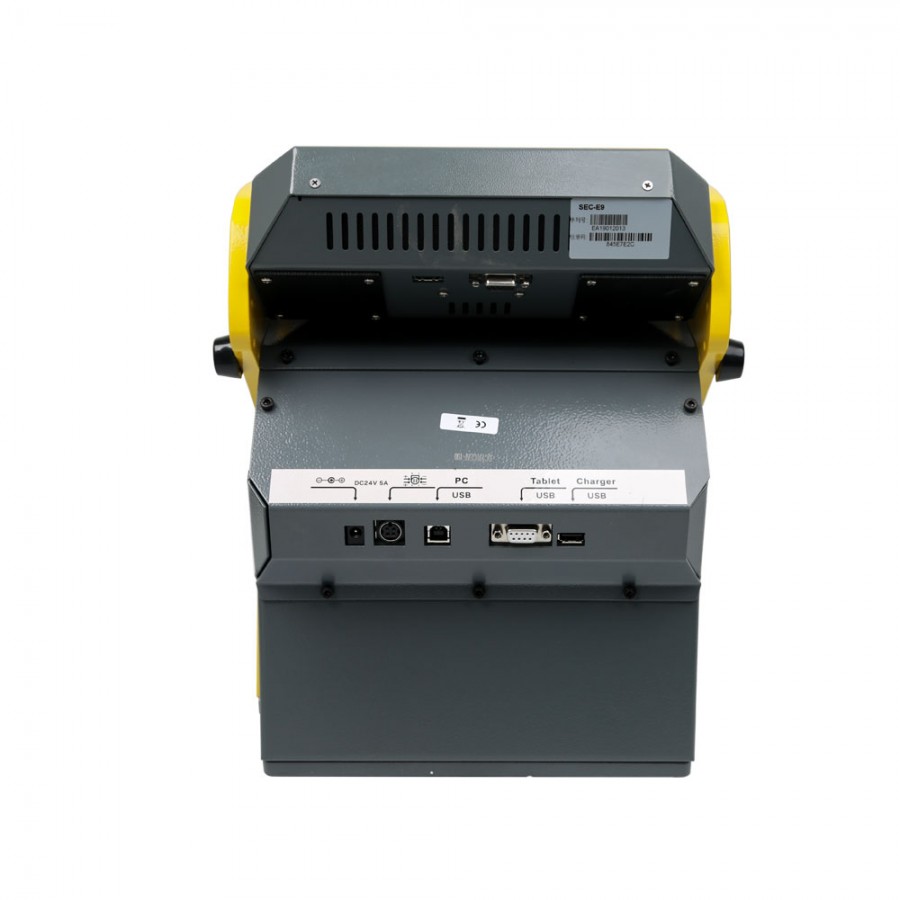

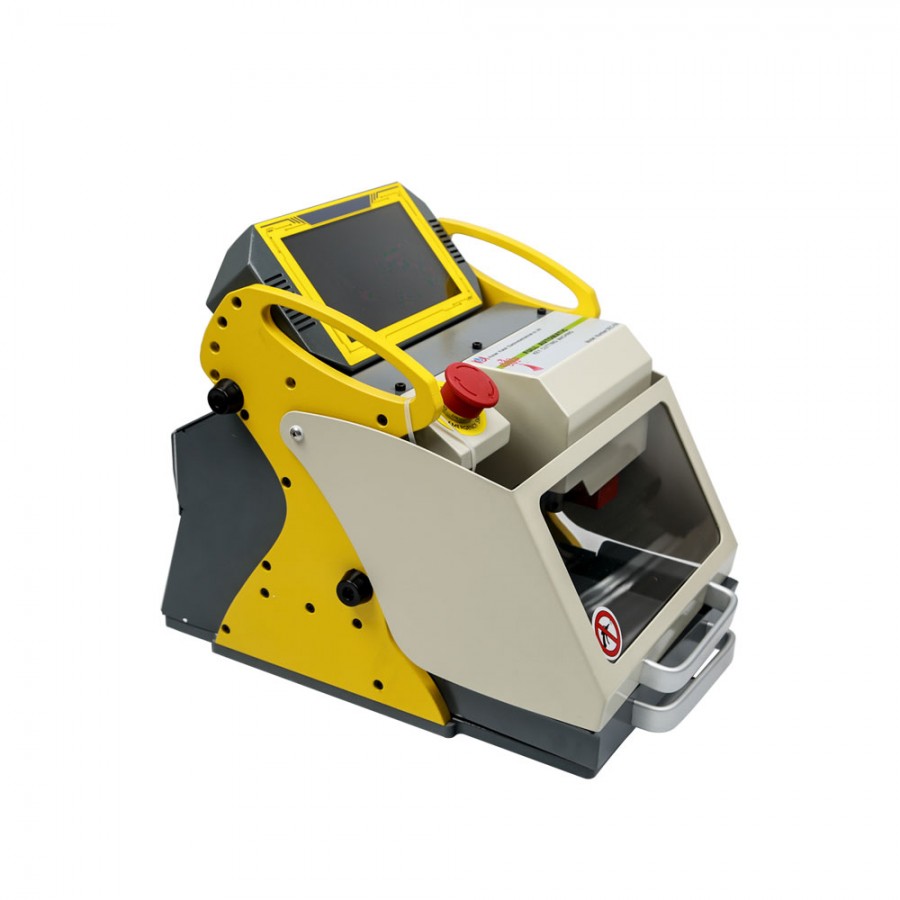

Product name: SEC-E9 Fully Automated Key Cutting Machine
Product No.: SEC-E9
Dimension: 255(W) * 360(H) * 340(D)m
Weight: 19.5KG
Resolution: XY: 0.005mm Z: 0.0015mm
Spindle Revolution: 16000+rp
Temperature: 0- 40
Humidity: 10-90
Usage : The duplicating and cutting of automobile keys and domestic key

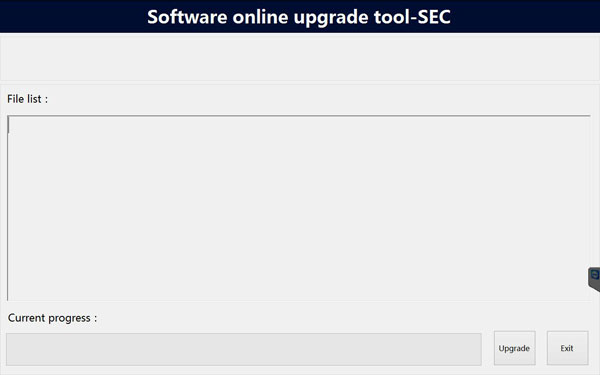

1. Click ”Setup”

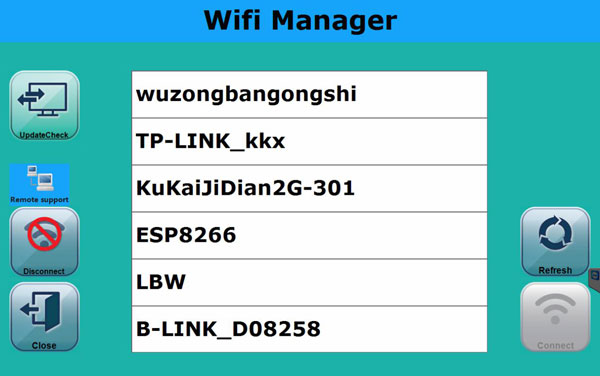

2. Click”Wifi”
3. Connect Wifi
4. Press ”UpdateCheck” after the wifi is connected successfully.
( Please notice that you just need to click the ”UpdateCheck” once, no need to click it repeatedly)
5. Click ”Upgrade” button
6. After upgrading successfully, the tablet PC will automatically jump to the main page.
Notice
1. Please keep the Wifi conncted when upgrade
2. Please keep the network smooth
3. Please do not turn off tablet PC when upgrading
4. Please do not operate the tablet PC when downloading the upgrade files.
5. Please disconnect Wifi after upgrade is done. ( otherwise the system will generate garbage when tablet PC updates automatically . Also cause the system to run slowly.)
Difference Between SEC-E9 Machine Gen I to Gen VI Difference:
SEC-E9 Key Cutting Machine FAQs:
Q: Can the SEC-E9 machine cut household keys?
A: definitely yes!
Q: Condor mini cannot support the moto key; SEC-E9 support that?
A: Yes,SEC-E9 can cut motorbike keys without issues.
Q: What’s the different between Condor key cutting machine and SEC-E9?
A: SEC-E9 can cut motorcycle keys and household keys that Condor cannot support.
SEC-E9 Key Cutting Machine Reviews:
Reviews 1:
SEC-E9 key cutting machine is used for cutting car keys and household keys. It covers cylinder and laser keys with adapters for other key styles.Computerized Electronic Automobile Key Cutting Machine, different with traditional key cutting machine,easy to operate and copy.
Reviews 2:
Sec-e9 fully automatic key cutting support cut 99% car keys, including standard keys and high security keys, such as BMW, VW, Audi, Mercedes, Honda, Opel,etc. It also supports to cut house keys, including dimple keys, tubular keys, single standard keys and more.Mainly applied to automobile key cutting and duplicating, especially for most foreign car key blanks(including ford tibbe), and household keys, standard key(edge or doubled-sided non laser keys),

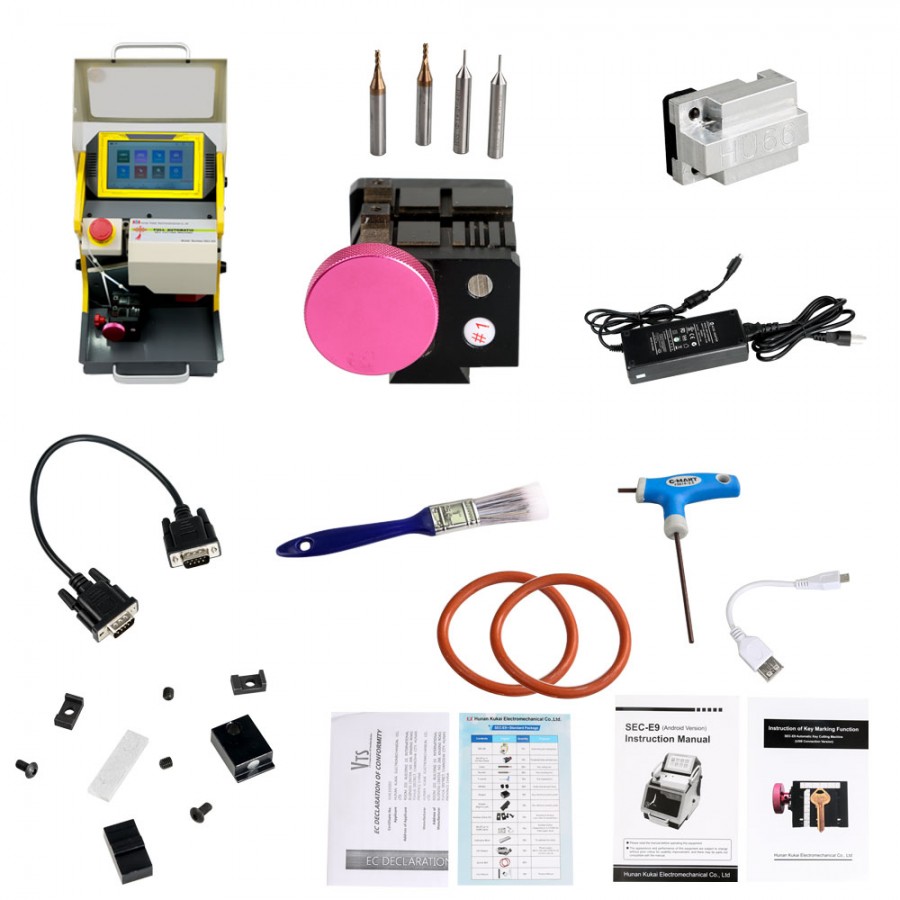

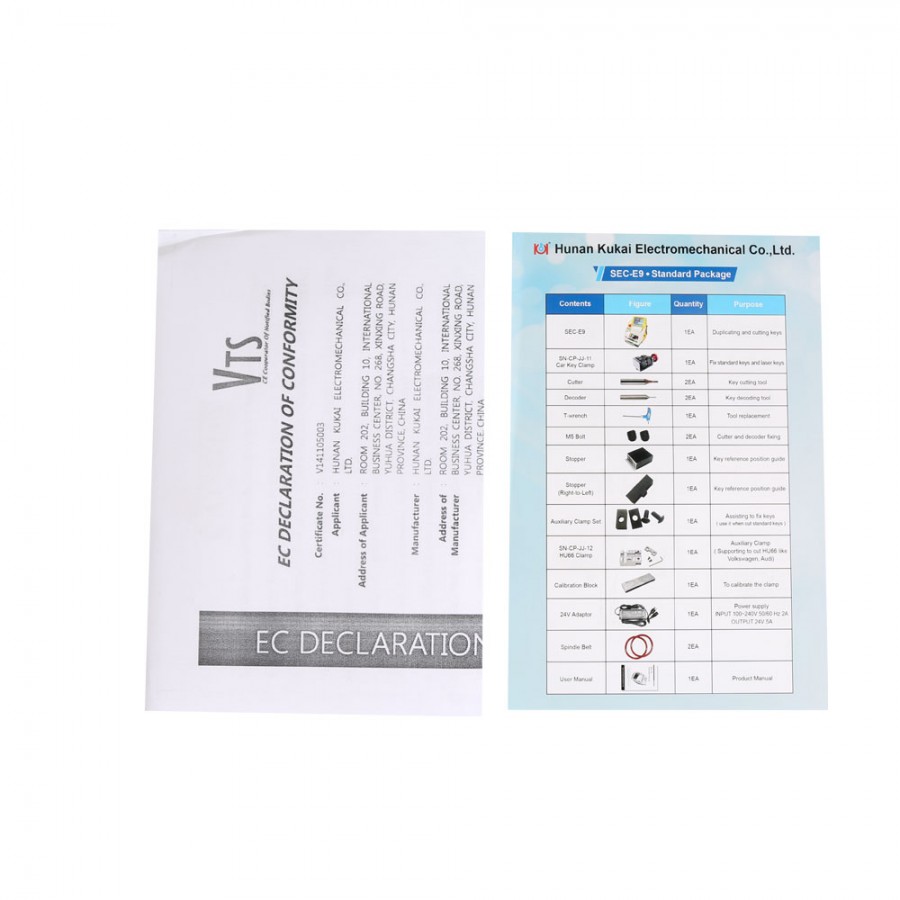

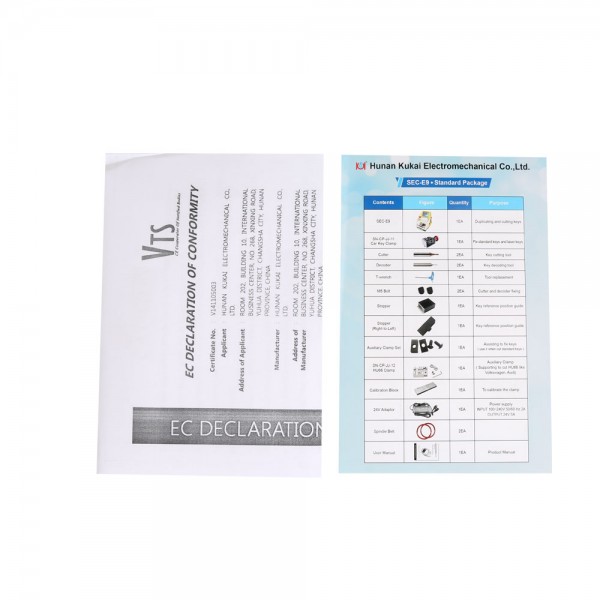

SEC-E9 Key Cutting Machine Standard Package
| Contents | Purpose |
| SEC-E9 Key Cutting Machine | Key cutting and duplication |

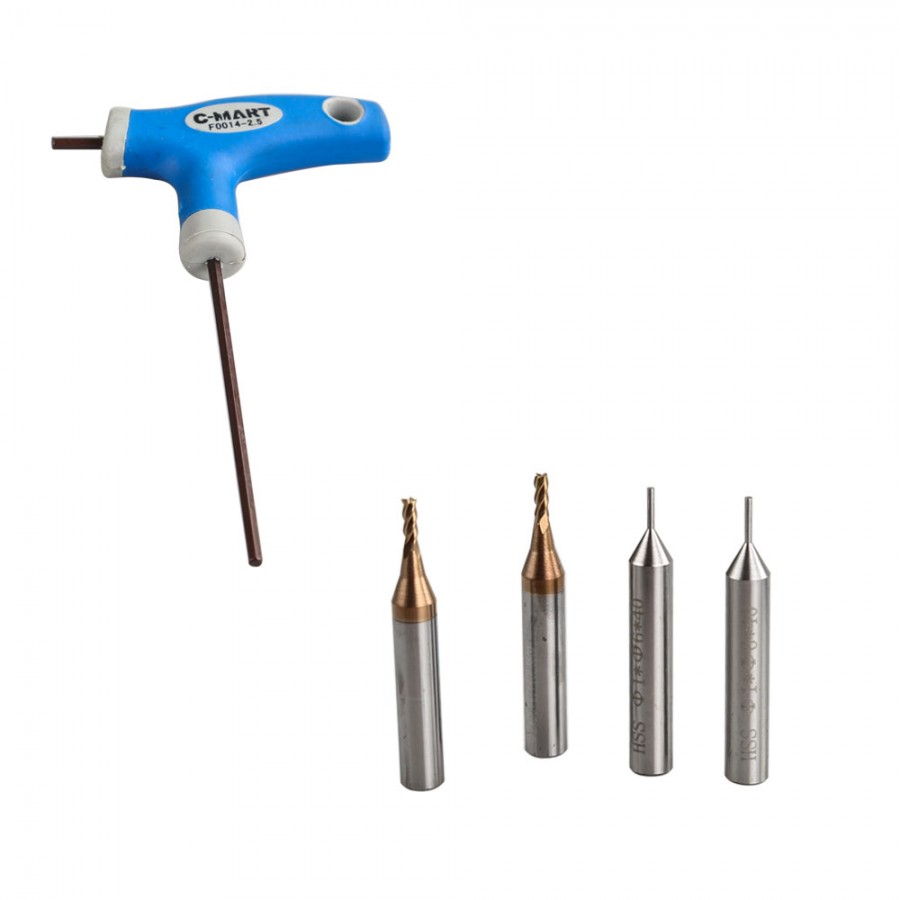

| Cutter | Tool for key cutting |
| Decoder | Key decoding(copying) |
| T wrench | Tool replacment |

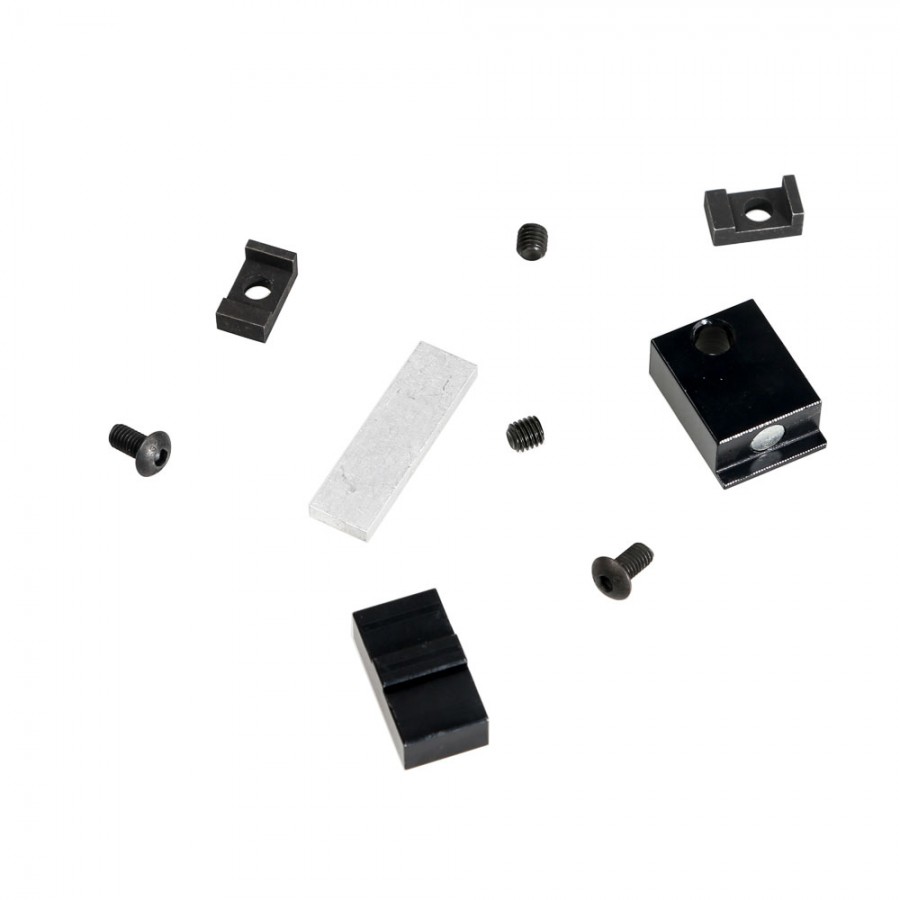

| M5 bolt | Cutter and decoder fixing |
| Stopper | Key reference position guide |
| Auxiliary clamp SX9 clamp | Key help fixing |
| Calibration block | To Calibrate the clamp |
| 24V Adapter | Power supply input 100-240V 50/60Hz output 24.OV 5A |
| Spindle belt | Ensure high-torque key cutting |
| User manual | Product Manual |
SEC-E9 Optional Parts:

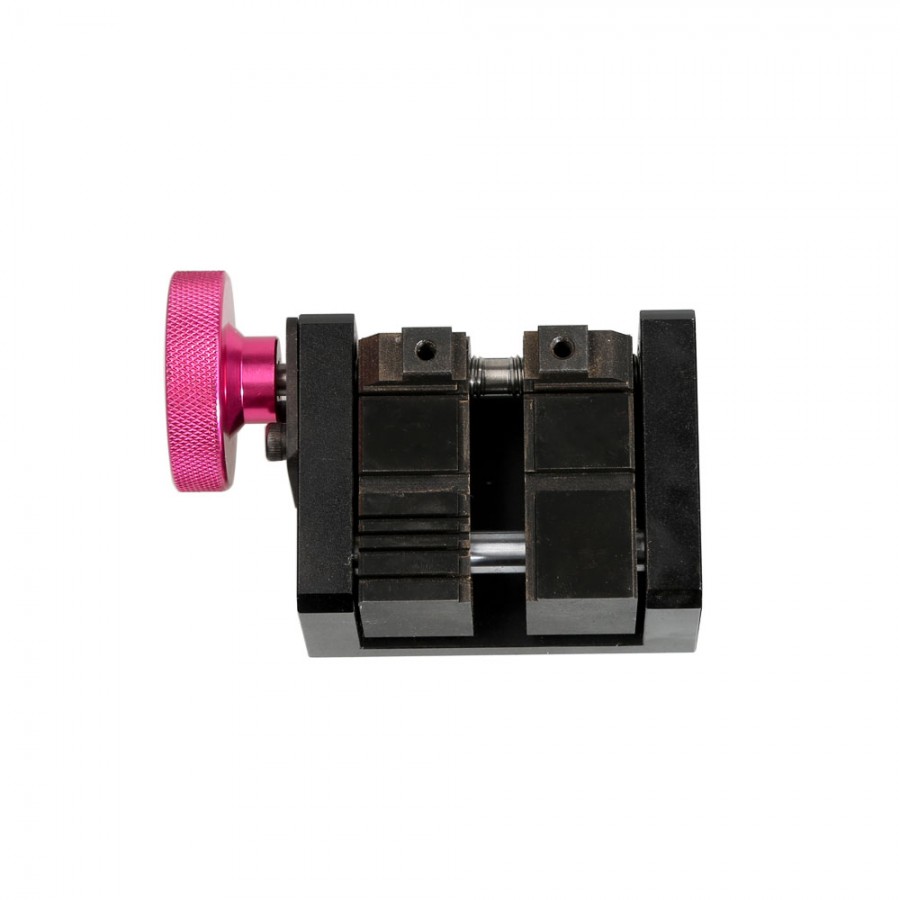

Different kinds of key clamps for SEC-E9 Key cutting machine optional. You just need to install the corresponding clamps for different key types, no software is needed when replacing the clamps. Automabile key clamp is included in the standard specification
| Item No. | Model | Clamp | Function |

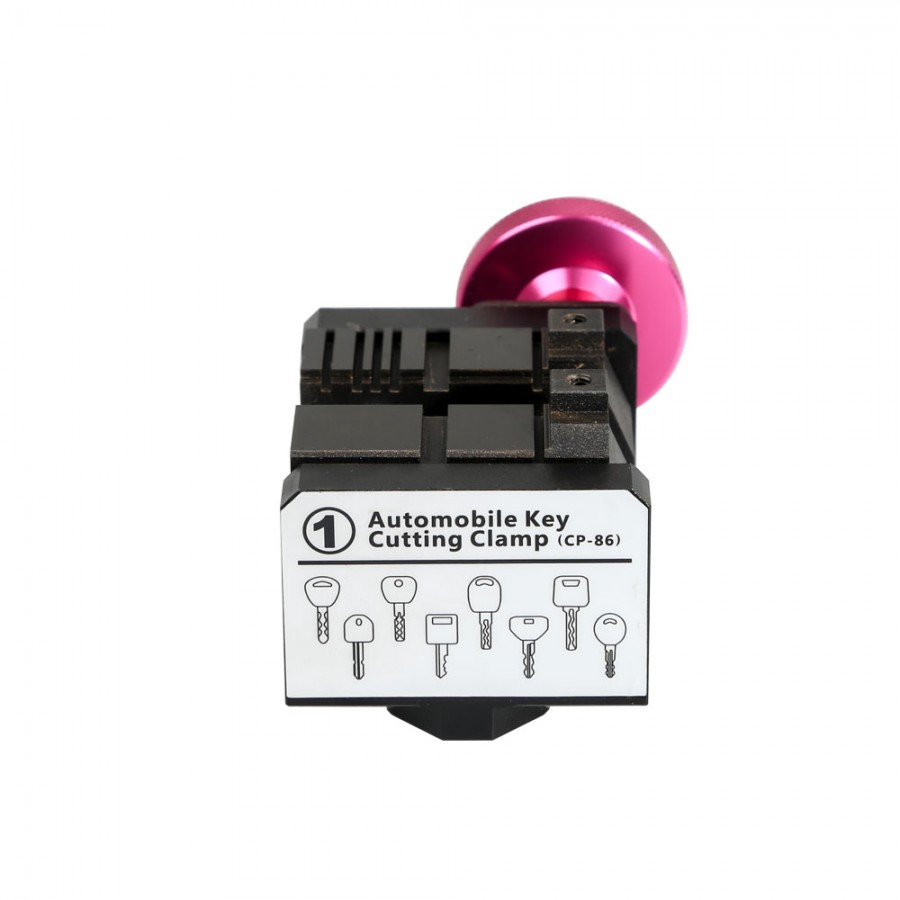

| SL433-1 | SN-CP-JJ-01 | Standard Clamp | cutting car keys |
| SL433-2 | SN-CP-JJ-02 | Dimple House Key Cutting Clamps |
cutting dimple house keys, dimple key cutter and decoder are requested |
| SL433-3 | SN-CP-JJ-03 | Single-sided Standard Key Clamp |
Cutting Single Standard House Keys |
| SL433-4 | SN-CP-JJ-04 | Tubular Key Clamp | Cutting Tubular House Keys |
| SL433-5 | SN-CP-JJ-05 | Ford Tibbe Jaws FO21 Key Clamp |
Cutting Ford and Jaguar Keys |
| SL433-6 | SN-CP-JJ-06 | LDV FO19 Clamp | Cutting LDV Car Keys |
| SL433-11 | #11 | HU64 Clamp | for Benz C series, E series, GLK series, Linear,Viano and all imported Benz Maybach |

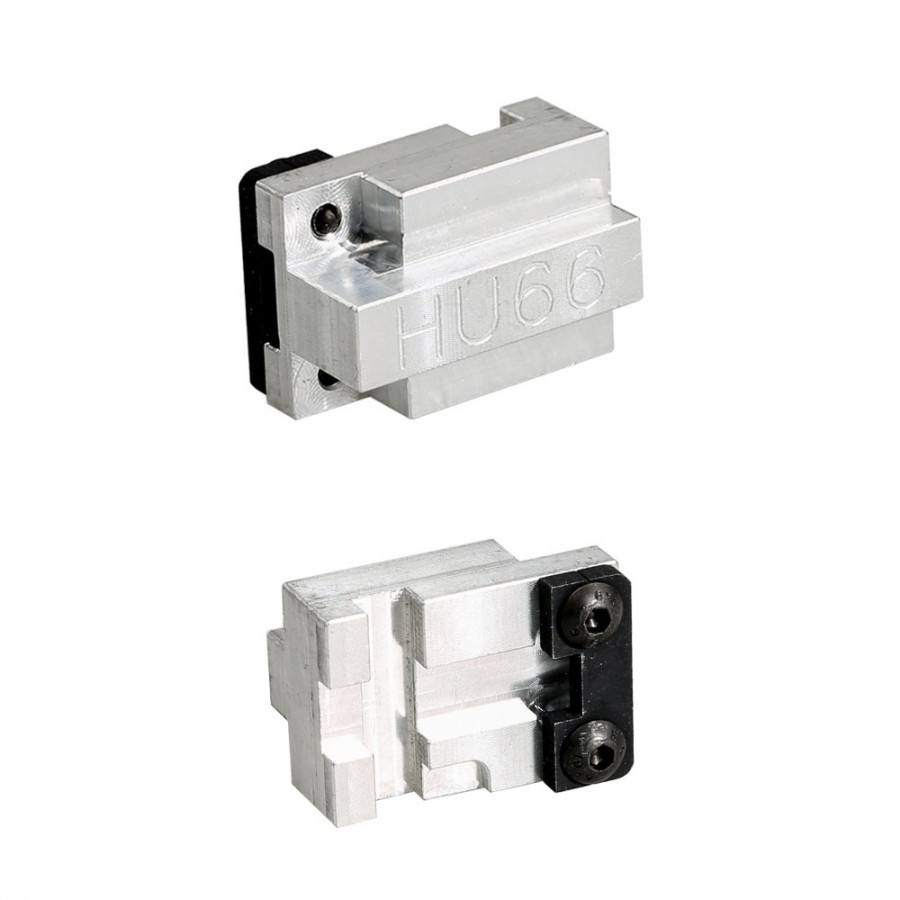

| SL433-12 | #12 | HU66 Clamp | for Sharan sharp way, Volkswagen phaeton,Beatles and other Volkswagen series, TT, Q7 and other Audi series, Bentley, Lamborghini, Skoda series, Porsche series, Roewe |
| SL433-14 | #13 | TOY2 Clamp | for New Toyota/Lexus/BYD Keys(one-side cut,thin laser key) |
| SL433-13 | #14 | VA2 Key Clamp | for New Renault Keys(one-side cut,thin laser key) |
| SL433-16 | SN-CP-JJ-16 | HU162T Clamp | For Volkswagen Golf 7, Magotan 2018, Lavida 2018, Phaeton etc. also for Audi 2018 new models |
