Product Description

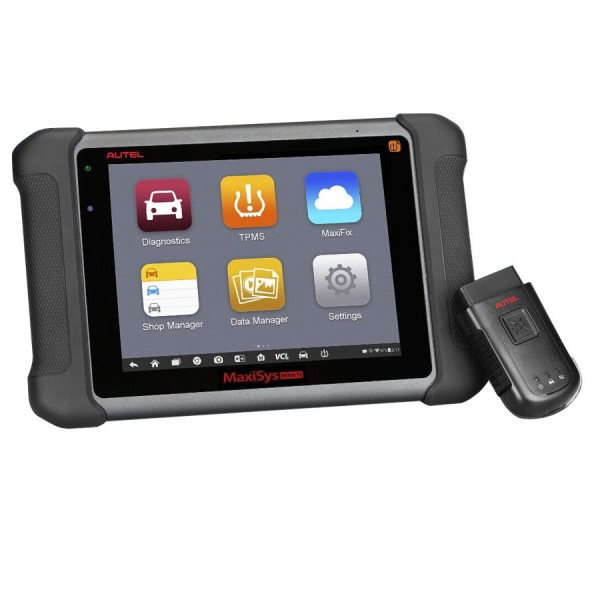

Autel MS906TS is an all-in-one industry first combining advanced diagnostics with complete TPMS functionality. Now technicians don’t need a second TPMS tool to trigger, relearn, or program Autel MX-Sensors. Quickly test all vehicle systems with one ultra-fast, lightweight, wireless, touch screen tablet with the same vehicle coverage and advanced diagnostics as the MS906.
100% Original Autel MaxiSys MS906TS Update Online
Notice: This Device Can Not Be Sold To Russia, Kazakhstan, South Korea and Saudi Arabia
Here Autel MaxiTPMS tool comparison table on TS401, TS501, TS601, PAD and MS906TS.
Top 3 Reasons to get Autel Maxisys MS906TS:
1.Wireless TPMS & Advanced Diagnostics System:Operating on the Android navigation system, the MS906TS provides amazingly fast sensor programming and diagnostic scan functions with its powerful running speed and large 32 GB solid state hard drive. The system also features the latest AutoVIN technology to identify vehicles in one touch as well as its exclusive AutoScan function. These features allow you to easily acquire vehicle information, scan all ECUs and run diagnostics on selected systems.

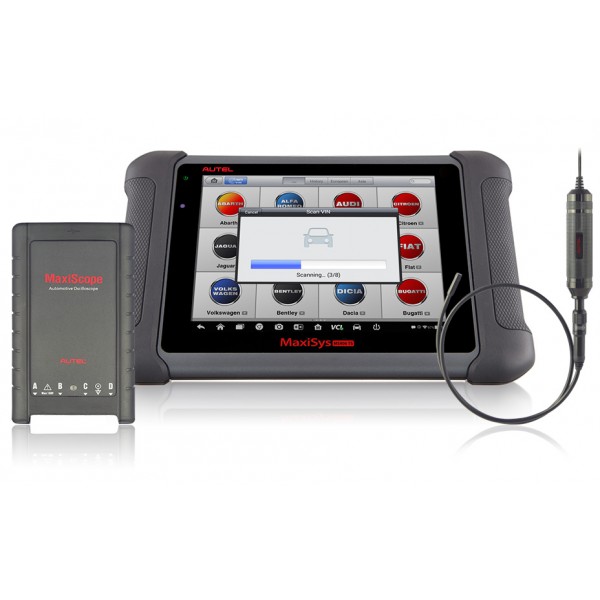

2.Optional Compatible Accessories: Featuring the best possible coverage of OE-level diagnostics and ECU coding capability, the MS906TS also supports add-ons like an oscilloscope and inspection camera to perform more extensive professional testing.
3.Autel Cloud: By and For the Community: As one of the fastest growing diagnostic companies in the world, Autel's innovators are determined to extend the boundaries of wireless evolution. Supported by superfast 802.11b/g/n Wi-Fi, big data becomes even more accessible. Autel now integrates real-time big data into the MaxiSys system using cloud-based innovations:

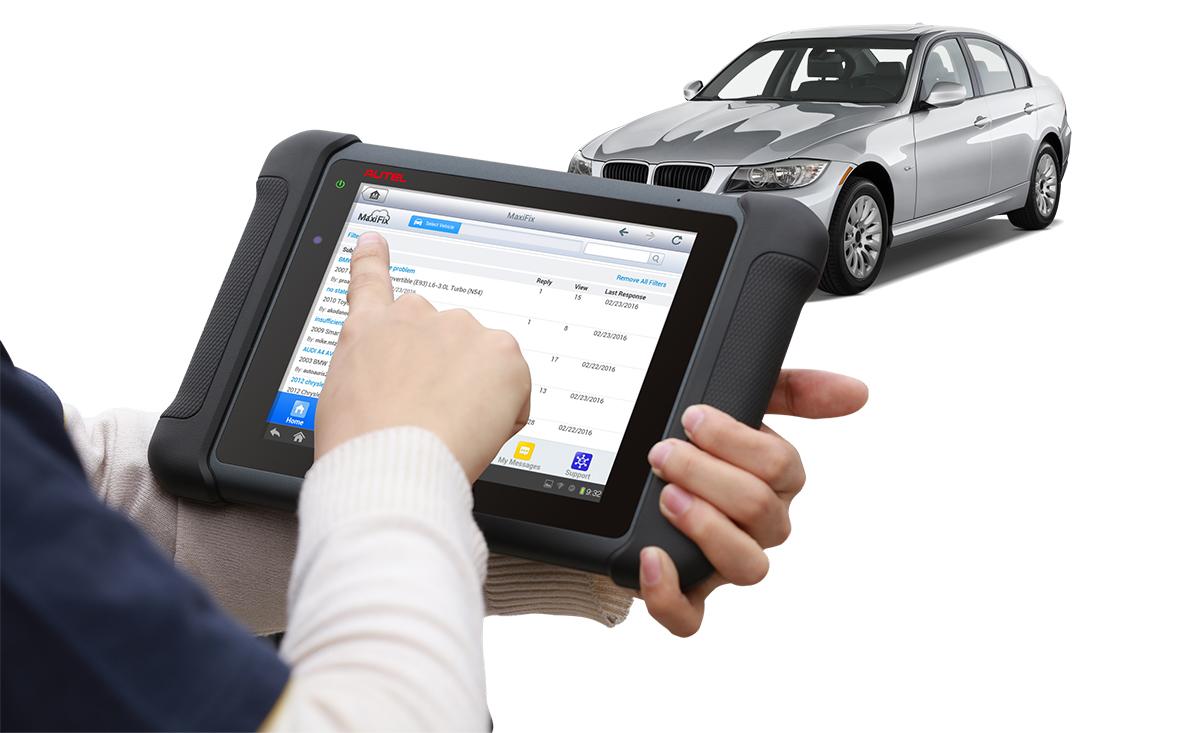

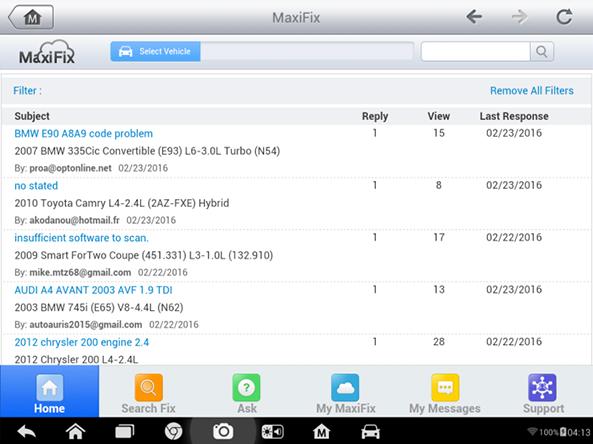

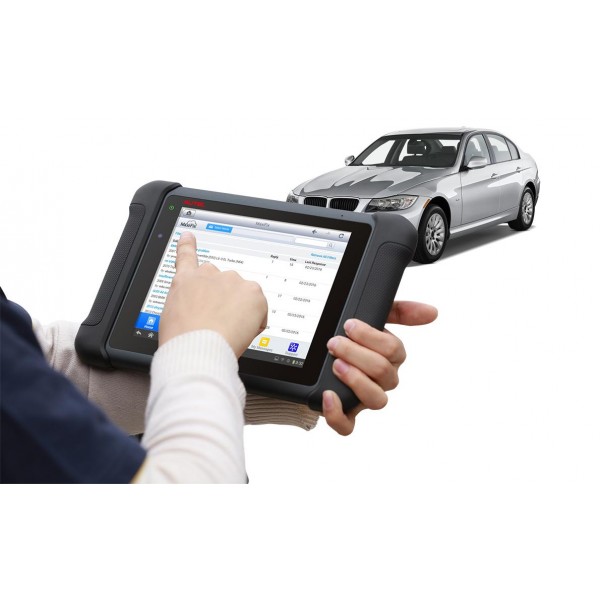

MaxiFix, Autel's online community of global professional technicians, offers a constantly expanding database which includes industrial professionals from around the world offering thousands of successful Fix & Tips that are shared, discussed and updated every day. This feature brings essential resources to your desktop in real time, granting quick and easy search of diagnostic and repair procedures, tips, and advices.

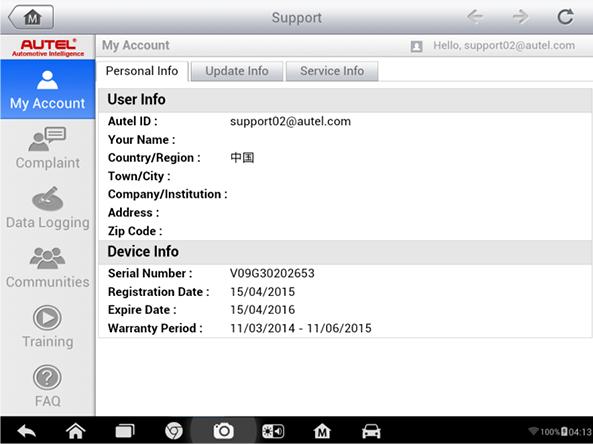

The Support module helps Autel users keep track of their devices by saving product update, repair and complaint records; it also provides a platform for communicating with support personnel directly through Data Logging sessions, and with other Autel users through specific product community channels.

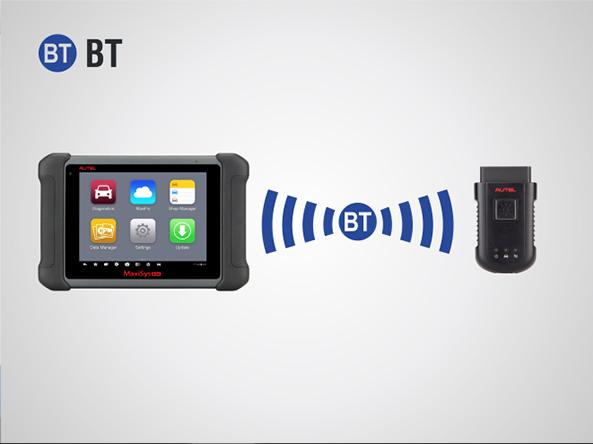

Enhanced wireless connectivity between the display tablet and VCI device allows greater mobility and ease at work.
MaxiSys MS906TS Description:

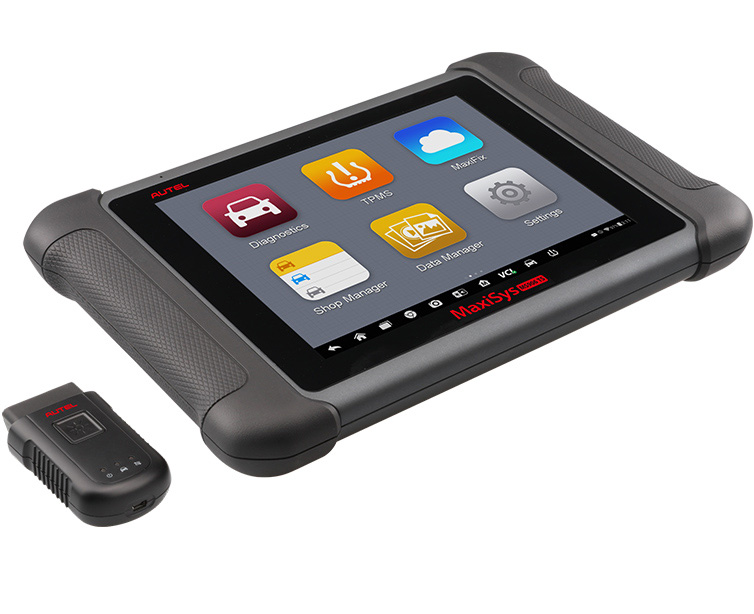

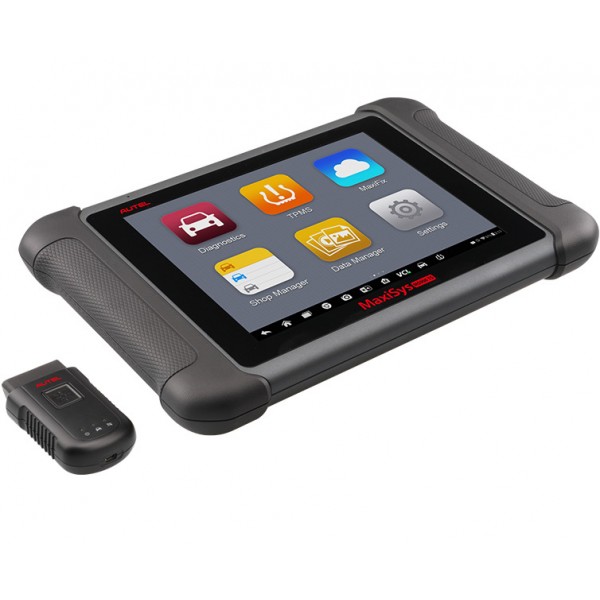

MaxiSys MS906TS is the latest addition to the MaxiSys product line of advanced wireless diagnostic devices integrated with the TPMS antenna module. The device is based on the Android operating system featured with the best possible coverage of OE-level diagnostics and TPMS integration. Utilizing the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), an 8” capacitive HD touch screen, and long-distance wireless communication, the MaxiSys MS906TS efficiently provides comprehensive vehicle diagnostics and analysis along with universal TPMS solutions.
MaxiSys MS906TS Features:
Extraordinarily powerful Samsung Exynos Hexa-core processor
8.0" 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology for ultra-mobility
Internal reliable 32GB SSD for better performance
Built-in 8-megapixel rear camera with autofocus and flashlight
Integrated TPMS antenna module for performing comprehensive TPMS service
802.11b/g/n Wi-Fi to access your favorite web resources
Unique ergonomic design with rubberized outer protection and a rugged internal housing
Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation
USB, audio and auxiliary ports make it easy to connect accessories
Open source Android Operating System for fast boot-up and multitasking
Easy and intuitive navigation makes finding what you need simple and fast
The most extensive complete system coverage for more than 80 US, Asian and European makes and models
Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding
Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.
Smart AutoVIN technology for identifying vehicle easily
Uniquely integrated TPMS service application designed for triggering known OEM TPMS sensors, programming Autel MX-Sensor and performing TPMS sensor relearn procedure
Automatic system and software updates with real-time push message notifications via internet
Instant remote control tech support anytime, anywhere
Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
Enhanced wireless connectivity between the display tablet and VCI device allows greater mobility and ease at work
Convenient data management system for managing internal program applications and reviewing data
MaxiSys MS906TS Specifications:
| Operating System | Android™ 4.4.2, KitKat |
| Processor | Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15) |
| Memory | 2 GB RAM & 32 GB ROM |
| Display | 8.0" LED capacitive touch screen with 1024x768P resolution |
| Connectivity | Wi-Fi (802.11 b/g/n), USB: 2.0, Mini USB 2.0, Wireless BT V2.1+EDR, Class1, HDMI 1.4a, SD Card (support up to 32 GB) |
| Camera (rear) | Rear-facing, 8.0 Megapixel, AF with Flashlight |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone, Single Speaker, 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery | 10,000 mAh 3.7 V lithium-polymer battery, Charging via 12 V AC/DC power supply |
| Input Voltage | 12 V (9-35 V) |
| Power Consumption | 5 W |
| Operating Temperature | -10 to 55°C (14 to 131°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Housing | Rubberized outer protection and rugged internal housing |
Autel MS906TS Package List:
User Manual
Carrying Case
Adaptor for Chrysler-16 (for NA only)
Light Fuse
MaxiVCI V100
Quick reference guide
Adaptor for GM/Daewoo-12
Adaptor for PSA-2
Adaptor for Fiat-3
Adaptor for BMW-20
Adaptor for Benz-38
Adaptor for Kia-20
Adaptor for Mitsubishi/Hyundai-12+16
Adaptor for Nissan-14
Adaptor for Honda-3
Cigarette Lighter
Compact Disc (CD)
AC/DC External Power Adapter
Adaptor for Benz-14 (for EU only)
Adaptor for VW/AUDI-2+2
Soft Cloth
Packing List
Mini USB Cable
